SIEMENS 6GK5302-7GD00-4EA3 New and Original High quality

6GK5302-7GD00-4EA3

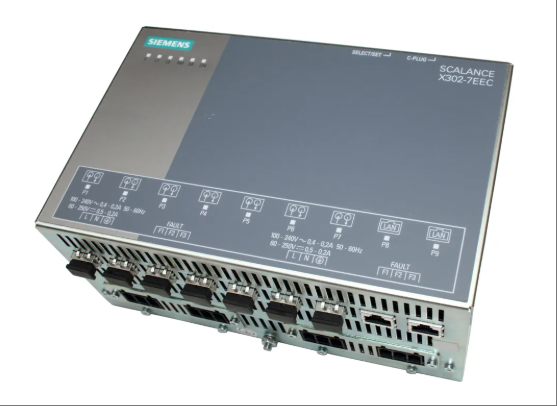

The industrial Ethernet switch 6GK5302-7GD00-4EA3 belongs to the SCALANCE X series, designed specifically for harsh industrial environments. It has 2 10/100/1000Mbit/s RJ45 electrical ports and 7 100Mbit/s LC fiber optic interfaces, supporting multi-mode fiber optic transmission distances of up to 3 kilometers and enabling mixed networking of copper and fiber optic cables. The device adopts a compact metal shell, meets the IP20 protection level, supports standard DIN rail installation or wall mounted installation, and has a working temperature range covering -45 ° C to+85 ° C, adapting to extreme environmental requirements. Its core functions include redundant power input (supporting dual 24V DC power supply), signal contact output, and LED status diagnosis. The signal contact parameters can be configured on site through the SELECT/SET button, and a C-PLUG module slot is reserved on the top for quick replacement of configuration media. This product is widely used in the fields of industrial automation, rail transit, and energy facilities. With high reliability (MTBF up to 105 years) and support for redundant ring network protocols, it can build industrial communication networks with millisecond level fault recovery capabilities. It is a key network component in Siemens' industrial IoT solutions.

Technical specifcations for 6GK5302-7GD00-4EA3

Category parameter details

Interface type and quantity: 2 10/100/1000Mbit/s RJ45 electrical ports, 7 100Mbit/s LC fiber optic interfaces (multimode)

Transmission rate and distance: The electrical interface supports 10/100/1000Mbit/s adaptive transmission, and the fiber optic interface can transmit up to 3 kilometers (using 62.5/125 μ m or 50/125 μ m multimode glass fiber)

Installation methods support standard DIN rail installation, S7-300 rail installation, and wall panel installation

Protection level IP20

Power connection 1 × 4-pin terminal block, supporting redundant power input (2 × 24V DC)

Signal triggered connection 1 × 2-pin terminal block, used to connect isolated signaling contacts

Status indication provides status information through a row of LEDs, including power, link status, data flow, power status, signal contacts, etc

The configuration method is equipped with SELECT/SET buttons for on-site configuration of signaling contacts

The top of the removable storage design device can be equipped with a slot for C-PLUG exchange media, which is convenient for replacement in case of failure

Working environment conditions: Working temperature range: -45 ° C to+85 ° C; Transportation/storage temperature range: -45 ° C to+85 ° C; Working humidity:<95% (no condensation)

Mechanical structure dimensions 217 × 138 × 97mm (width × height × depth)

Weight 1400g

Certification and standards comply with international standards such as EN 61000-6-4 and EN 61000-6-2, and have passed multiple certifications including UL, CSA, FM, ATEX, etc

The mean time between failures (MTBF) is as high as 105 years
