SIEMENS 6ES7792-0AA00-0XA0 New and Original High quality

6ES7792-0AA00-0XA0

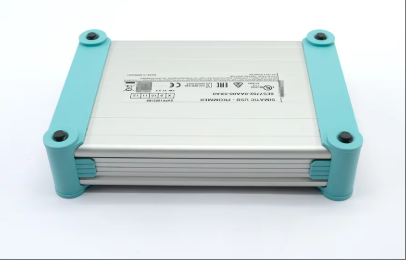

The 6ES7792-0AA00-0XA0 model product is a SIMATIC series programming device, which is an external programmer with a USB interface designed specifically for Siemens PLCs (such as S7-200CN, S7-200SMART, S7-300, S7-400, S7-1200, S7-1500, etc.). It supports connection to a PC through a USB interface to achieve fast data transmission and program editing. It can be used to program SIMATIC memory, micro memory cards, EPROM and EEPROM modules, with efficient operation and convenient data transmission functions. It is widely used in automated production lines, logistics conveying systems, and energy management projects, meeting the diverse needs of PLC module programming and control in the industrial automation field. It is suitable for various Siemens industrial products and helps to assist in programming SIMATIC memory, micro memory cards, EPROM and EEPROM modules. Improve equipment operation efficiency and reliability.

Technical specifcations for 6ES7792-0AA00-0XA0

Model: 6ES7792-0AA00-0XA0

Type: USB external programmer (also known as card reader module)

Usage: Used for programming SIMATIC memory, SIMATIC miniature memory cards, and SIMATIC EPROM and EEPROM modules

2、 Electrical parameters

Power supply voltage: 12 V DC, 1.25 A (powered by the accompanying power supply of 100-240 V/50-60 Hz/400-200 mA)

Interface type: USB interface, used for connecting with PC

3、 Physical parameters

Dimensions: Width approximately 172mm, height approximately 40mm, depth approximately 121mm

Weight: Approximately 400 grams

4、 Environmental adaptability

Operating environment temperature: 5 ° C to 40 ° C

Transportation/storage environment temperature: -20 ° C to 60 ° C

5、 Functional characteristics

Programming support: Supports programming using STEP 7 (V5.1 with SP2) or STEP 5 basic software package (V7.2)

Slot design: Includes one slot for SIMATIC memory cards

Supply scope: including 1 S5 EPROM adapter (for programming SIMATIC EPROM or EEPROM), 1 USB cable, 1 CD with driver software and data, 1 plug-in power supply with primary connection adapter for Europe and USA, and 1 packaging box

6、 Compatibility and Scalability

Controller compatibility: Supports communication and control with multiple CPU environments such as S7-400 series PLCs

Multi CPU processing: The running status of CPUs operating on a shared peripheral bus (P) and communication bus (K) will be automatically synchronized, suitable for situations where programs are too long and storage space is insufficient. Complex tasks can be split into up to 4 CPUs for computation

7、 Certification and Standards

Product certification: Complies with relevant standards and specifications in the field of electrical and automation technology

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

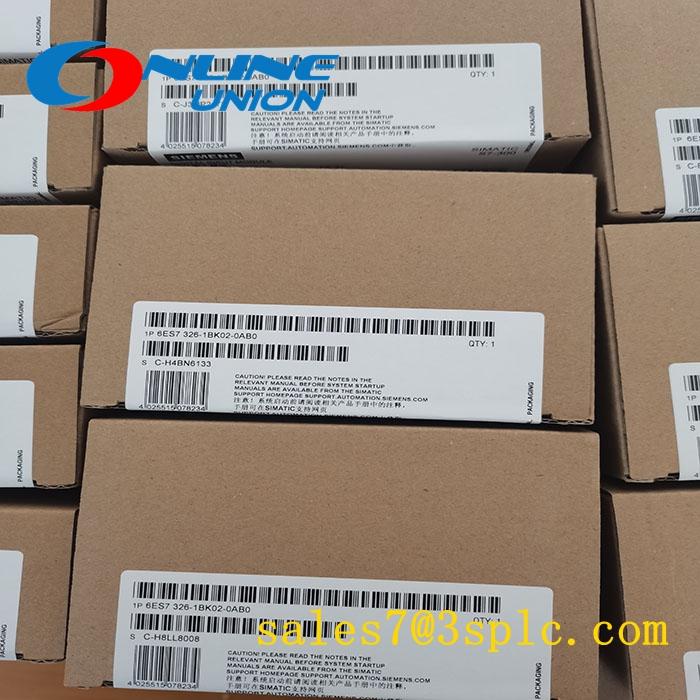

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
