SIEMENS 6ES7553-1AA00-0AB0 New and Original High quality

6ES7553-1AA00-0AB0

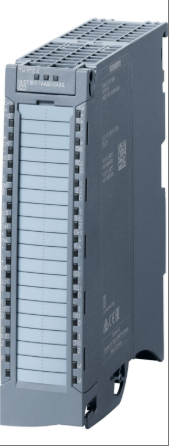

The 6ES7553-1AA00-0AB0 model product is a TM PTO 4 interface module of the SIMATIC S7-1500 series. As a channel interface module, it supports PTO (Pulse Train Output) function and can configure three signal interfaces for speed and direction, including 24V asymmetric (up to 200kHz), RS 422 5V symmetric (up to 1MHz), and TTL 5V asymmetric (up to 200kHz). It can output pulses and direction, forward and reverse motion pulses, as well as two phase shift signals, suitable for simple and quadruple analysis scenarios; This module supports multiple process objects, such as speed control axis (applicable to S7-1500, S7-1500T), positioning axis (applicable to S7-1200, S7-1500, S7-1500T), synchronization axis (applicable to S7-1500, S7-1500T), and probe (applicable to S7-1500, S7-1500T). It can control the driving device with PTI interface (pulse train input) through TM PTO 4 process module to achieve control of four axes. It can be used for SIMATIC S7-1500 controller or connected to driving devices without PROFINET interface. Its open-loop control and motion control are carried out in the CPU, and the control data is converted into digital signals through corresponding modules. It has all the advantages of the S7-1500 design, installed on the S7-1500 DIN rail with a single screw, equipped with a standard 40 pin front connector, with spiral terminals or push in connections, and a core wire cross-sectional area of 0.25mm ² that can be connected Up to 1.5mm ² (AWG 24 to 16), the front connector has a pre wired position, and the front cover has an expandable cable compartment for quick positioning and error elimination. The wiring diagram printed on the inside of the front door provides wiring assistance and integrated shielding. The supply scope includes a label strip for manual labeling and a U-shaped connector.

Technical specifcations for 6ES7553-1AA00-0AB0

Product type: SIMATIC S7-1500 series TM PTO 4 interface module, used for stepper drive, with 4-channel pulse sequence output (PTO) function.

Signal interface:

Three signal interfaces can be configured for speed and direction, including 24V asymmetric (up to 200kHz), RS 422 5V symmetric (up to 1MHz), and TTL 5V asymmetric (up to 200kHz).

Three signal types can be configured, including pulse and direction, forward motion pulse and reverse motion pulse, and two phase shift signals, supporting simple and quadruple analysis.

Supported process objects:

Speed control axis (applicable to S7-1500, S7-1500T)

Positioning axis (applicable to S7-1200, S7-1500, S7-1500T)

Synchronous axis (applicable to S7-1500, S7-1500T)

Probe (applicable to S7-1500, S7-1500T)

Control ability:

Through the TM PTO 4 process module, drive devices with PTI interface (pulse train input) can be controlled.

It can control 4 axes, which can be used for axis process objects of SIMATIC S7-1500 and SIMATIC S7-1200 controllers, as well as for connecting less complex drive devices without PROFINET interface.

Control method: Open loop control and motion control are performed in the CPU, and control data is converted into digital signals through corresponding modules.

Installation and Connection:

Install a single screw onto the S7-1500 DIN rail.

Equipped with a standard 40 pin front connector with spiral terminals or push in connections.

The cross-sectional area of the connectable core wire is 0.25mm ² to 1.5mm ² (AWG 24 to 16).

Other features:

The front connector has a pre wired position, and the front cover has an expandable cable compartment for quick positioning and error elimination.

The wiring diagram printed on the inside of the front door provides wiring assistance.

Integrated shielding.

The supply scope includes a label strip and a U-shaped connector for manual labeling.
