SIEMENS 6ES7547-1JF00-0AB0 New and Original High quality

6ES7547-1JF00-0AB0

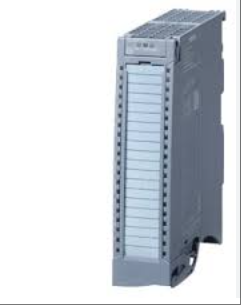

The 6ES7547-1JF00-0AB0 model product is an IO Link communication module designed specifically for the SIMATIC S7-1500 system. As the CM 8xIO Link master station module, its core function is to integrate 8 IO Link interfaces to achieve a three wire connection with intelligent devices such as sensors and actuators. It supports the IO Link V1.1 standard protocol and can flexibly adapt to the data transmission needs of different devices. This module has multi protocol compatibility and can be directly integrated into ET 200MP distributed systems through PROFINET or PROFIBUS, or used as a local expansion module for S7-1500 CPUs. Its modular design allows for the centralized installation of up to 30 I/O modules in the CPU or ET 200MP rack, significantly optimizing space utilization. IO Link ports can be easily configured through STEP 7 or S7-PCT tools, and support port mode switching, parameter centralized backup, and main station hot plugging. Combined with built-in diagnostic functions, device status can be monitored in real time, and preventive maintenance capabilities can reduce the risk of factory downtime. This module adopts a front connector design, supporting screw type terminal blocks or direct insertion connections. Its compact structure (net weight 0.302kg, size 151 × 152 × 47mm) and IP20 protection level ensure stable operation in industrial sites, especially suitable for automated production lines that require high-density intelligent device access.

Technical specifcations for 6ES7547-1JF00-0AB0

Basic information

Brand and Model: SIEMENS 6ES7547-1JF00-0AB0

Product type: CM 8xIO Link communication module master station, used for SIMATIC S7-1500 system

Protocol support: Supports IO Link V1.1 standard protocol

Module type: Communication module, providing 8 IO Link interfaces

2、 Electrical and connection parameters

Connection method:

Supports screw type terminal blocks or direct insertion connections, specific connection methods need to be ordered separately

Adopting a three wire connection method, suitable for connecting multiple IO Link devices

Data transmission rate: Supports COM1 (4.8 kBit/s), COM2 (38.4 kBit/s), COM3 (230.4 kBit/s)

Input/output data restrictions:

Up to 32 bytes of input and output data per port

Each module has a maximum of 240 bytes of input and output data

3、 Function and Features

Redundancy and scalability:

Support distribution in ET 200MP through PROFINET or PROFIBUS

Up to 30 I/O modules can be centrally inserted after S7-1500 CPU or ET 200MP

Diagnosis and maintenance:

Powerful diagnostic capabilities promote preventive maintenance and prevent factory shutdowns

Support parameter allocation through IO Link master station and can be stored in CPU

Support replacing IO Link master station without losing data

Easy to perform clear diagnostics, including remote diagnostics

Parameter configuration and configuration:

Support the use of the 'IOU_LINK-MASTER_8' function block to perform primary backup

Support IO Link port configuration through STEP 7 or S7-PCT tools

Support port mode switching, such as "IO Link Auto Start" mode (default), "IO Link Manual" mode, running as digital input, disabling, etc

4、 Environmental and physical parameters

Protection level: IP20

Size and weight:

Size: 151 × 152 × 47mm

Net weight: approximately 0.302kg (also known as 0.304kg)

Installation method: Use a single screw to install on the S7-1500 mounting rail, with a 40 pin front connector

5、 Software and Compatibility

Programming and Configuration:

Support port configuration using TIA Portal or GSD files

Provide a unified programming interface for system integration and development

compatibility:

Compatible with multiple physical interfaces, such as RS232, RS422, or RS485

Support predefined protocols such as 3964 (R), Modbus RTU, or USS

Application specific protocols based on Freeport (ASCII) are also supported
