SIEMENS 6ES7532-5HD00-0AB0 New and Original High quality

6ES7532-5HD00-0AB0

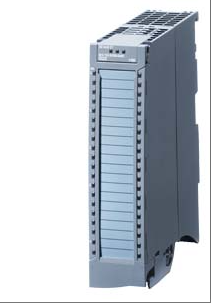

The 6ES7532-5HD00-0AB0 model product is a high-performance analog output module designed specifically for the S7-1500 series PLC. It belongs to the AQ 4xU/I ST type and has 4-channel independent analog output function. It supports voltage (0-10V, 1-5V, ± 10V) and current (0-20mA, 4-20mA, ± 20mA) signal output, and uses 16 bit resolution to achieve high-precision signal conversion. The output cycle time is as short as 3.2ms and is independent of the number of channels. It is suitable for scenarios in industrial automation that require fine control of actuators. This module integrates short-circuit protection, overcurrent protection, and reverse polarity protection functions, with a working voltage range of 19.2-28.8V DC and a typical power consumption of 4W. It supports PROFINET IO communication protocol and is compatible with STEP 7 TIA Portal V12 and above configuration software. It is suitable for high reliability applications in complex industrial environments.

Technical specifcations for 6ES7532-5HD00-0AB0

Product type and identification:

The product type symbol is AQ 4xU/I ST, which belongs to the analog output module.

The hardware functional status is FS04 or above, the firmware version supports V2.2.0 and above, and the firmware can be updated.

Power parameters:

The rated voltage of the power supply is 24V DC, with an allowable range of 19.2V DC to 28.8V DC.

Equipped with reverse polarity protection function, the maximum current consumption is 190mA (when powered by 24V DC).

The typical value of power loss is 4W, and the power output from the backplane bus is 0.6W.

Simulated output parameters:

The number of analog output terminals is 4, supporting voltage output and current output.

The voltage output range includes 0 to 10V, 1V to 5V- 10V to+10V, equipped with short-circuit protection function, with a maximum short-circuit current of 24mA.

The current output range includes 0 to 20mA- 20mA to+20mA, 4mA to 20mA, with a maximum no-load voltage of 22V.

The minimum cycle time (for all channels) is 3.2ms, which is independent of the number of activated channels.

Load and connection parameters:

Supports both voltage and current outputs for two-wire or four wire interfaces.

The minimum load resistance at the voltage output terminal is 1k ohms (0.5k ohms at 1 to 5V), and the maximum value of the capacitive load is 1 µ F.

The maximum load resistance of the current output terminal is 750 ohms, and the maximum value of the inductive load is 10mH.

In terms of wire length, the maximum value for shielded wire is 800m (at current/voltage), and the maximum value for unshielded wire at voltage output is 200m.

Resolution and conversion time:

The maximum resolution (including the number of symbols) with over modulation is 16 bits.

The conversion time (for each channel) starts from 0.5ms, and the starting time varies depending on the type of load (1.5ms for resistive loads and 2.5ms for capacitive/inductive loads).

Communication and configuration parameters:

Supports PROFINET IO communication protocol, GSD version/revision above version 2.3.

It can be configured through STEP 7 TIA Portal (since version V12) and STEP 7 (since version V5.5 SP3).

Integrate I&M data (I&M0 to I&M3), supporting parameter allocation and calibration changes in RUN mode.

Environmental and safety parameters:

The protection level is IP20, suitable for industrial environments.

The product's functional status and firmware version support continuous updates to ensure compatibility with the latest control systems.
