SIEMENS 6ES7523-1BL00-0AA0 New and Original High quality

6ES7523-1BL00-0AA0

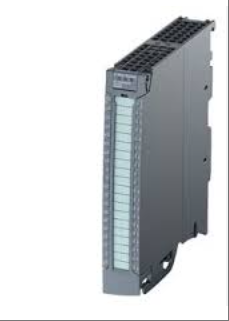

The 6ES7523-1BL00-0AA0 model product is a high-performance digital input/output module for Siemens S7-1500 series PLC, with 16 channel 24V DC digital signal acquisition and output capabilities, supporting load distribution of 8 channels per group and 4A per group. The typical input delay value is 3.2ms, which complies with the IEC 61131 standard. The modular design allows it to be seamlessly integrated with S7-1500 series controllers and achieve plug and play through a plug-in front connector, meeting the core requirements of high-precision signal processing, fast response, and flexible expansion in the field of industrial automation. It is suitable for complex mechanical control, energy management, traffic signal systems, and other scenarios that require strict real-time and reliability.

Technical specifcations for 6ES7523-1BL00-0AA0

Input section:

Number of input channels: 16 digital input channels.

Working voltage: 24V DC.

Input terminal type: Type 3 (IEC 61131).

Input delay: Typical 3.2ms.

Signal type: capable of receiving 24V DC signals.

Dynamic response time: ≤ 1ms, able to quickly respond to signal changes.

Channel grouping: 16 channels. Although the grouping description mentions "16 channels per group", in practical applications, the 16 input channels can be flexibly configured as needed without strict physical grouping restrictions.

Output section:

Number of output channels: 16 digital output channels.

Working voltage: 24V DC.

Single channel maximum current: 0.5A.

Channel grouping: Each group has 8 channels, with a maximum current of 4A per group, and supports load grouping management.

Output type: Digital output (BA type), using transistor output method.

Security function:

Safe disconnection load group: supports SIL2 (compliant with EN IEC 62061:2021) and Category 2/PL c (compliant with EN ISO 13849-1:2015) safety standards, and can safely disconnect loads in the event of a fault.

Other parameters:

Working temperature range:- Suitable for various industrial environments from 20 ° C to+60 ° C.

Supply scope: including direct insertion front connectors to simplify the installation process.

Installation method: Supports DIN rail installation, easy to integrate into the control cabinet.

Diagnostic function: It has the ability to diagnose faults, monitor input and output status in real time, and ensure the reliable operation of the system.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
