SIEMENS 6ES7522-5EH00-0AB0 New and Original High quality

6ES7522-5EH00-0AB0

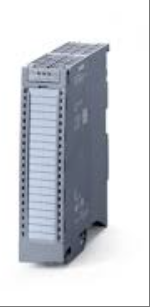

The 6ES7522-5EH00-0AB0 model product is a digital output module of Siemens SIMATIC S7-1500 series PLC, designed specifically for high-precision signal control requirements in industrial automation scenarios. This module adopts a 16 channel standard digital output architecture, supporting a voltage range of 24-48V UC or 125V DC, with a rated output current of 0.5A per channel. It has the function of safely disconnecting the load group and can achieve SIL2 level functional safety certification (compliant with EN IEC 62061:2021 standard) and Category 3/PL d-level mechanical safety certification (compliant with EN ISO 13849-1:2015 standard). Its modular design supports fast wiring through front connectors (screw type or direct insertion type), compatible with 40 pin front connector technology, and can adapt to 35mm wide module rail installation. The product communicates with S7-1500 series CPUs through industrial protocols such as PROFINET/PROFIBUS, and is suitable for process control, equipment monitoring, and automated production line management in industries such as automotive manufacturing, electronic assembly, and mechanical processing. It is particularly suitable for industrial scenarios that require strict signal response speed and system reliability. Its compact design (net weight 0.33kg, packaging size 15.1 × 15.1 × 4.7cm) facilitates control cabinet integration.

Technical specifcations for 6ES7522-5EH00-0AB0

Basic specifications

Number of output channels: 16 channels, using transistor output type, supporting multi-channel control.

Rated output current: Each group outputs 0.5A, meeting the requirements of conventional load driving.

Output voltage range: Supports 24-48V UC (DC) or 125V DC, compatible with different industrial voltage standards.

2、 Security and Certification

Safety standards: Achieve SIL2 level (EN IEC 62061:2021) and Category 3/PL level (EN ISO 13849-1:2015) functional safety certification to ensure the reliability of system operation.

Protection design: Equipped with transient suppression diodes, it limits the inductive shutdown voltage to 200V, effectively protecting circuit safety.

3、 Electrical characteristics

Output end on/off capability:

Resistance load maximum 0.5A

The maximum lighting load is 40W (at 125V DC)

Signal logic parameters:

Minimum output voltage of signal "1": L+(-1.0V)

Rated output current of signal "1": 0.5A

Maximum allowable range for signal "1": 0.6A

Response time: Under resistive load, the switching delay from "0" to "1" or "1" to "0" is ≤ 5ms.

4、 Interface and Connection

Front connector: Supports screw type terminal blocks or direct insertion interfaces (requires separate ordering), compatible with 40 pin front connector technology.

Rail Installation: Compatible with 35mm wide module rails and supports cable tie fixation.

Signal connection: Provides potential bridging function and supports multi-channel signal synchronization processing.

5、 Environmental adaptability

Working temperature range: 0-60 ° C for horizontal installation and 0-40 ° C for vertical installation, suitable for different industrial scenarios.

Protection level: The module has dust-proof design and is suitable for complex industrial environments.

Mechanical dimensions: width 35mm, height 147mm, depth 129mm, net weight approximately 230g, convenient for compact cabinet installation.

6、 Functional characteristics

Diagnostic function: Supports channel level status display, providing real-time feedback on operating status through LED indicator lights.

Redundancy control: Supports parallel redundancy control at the output end to enhance the reliability of critical loads.

Firmware upgrade: Firmware updates can be performed through STEP 7 TIA Portal, compatible with V13 SP1 and above versions.

7、 Application scenarios

Industrial automation: suitable for scenarios that require high-precision digital output, such as production line control and equipment monitoring.

Safety monitoring: meets the strict requirements for functional safety in applications such as mechanical safety protection and process control.

Intelligent Manufacturing: Supports seamless integration with S7-1500 series PLCs to achieve intelligent production line upgrades.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
