SIEMENS 6ES7522-1BH00-0AB0 New and Original High quality

6ES7522-1BH00-0AB0

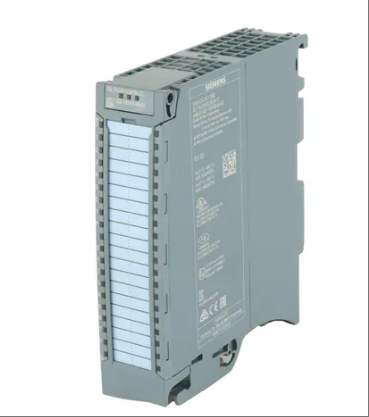

The 6ES7522-1BH00-0AB0 model product is a high-performance digital output module belonging to the SIMATIC S7-1500 series. It adopts transistor output technology and supports 16 channel 24V DC/0.5A load driving capability. Its 16 channels are configured in groups of every 8 channels, with a maximum load current of 4A per group, which can achieve high-density digital signal output; The module supports single channel diagnostic function and is equipped with a switch operation cycle counter for real-time monitoring of the actuator's operating status; Adopting a compact 35mm modular design, compatible with screw type terminal blocks or direct insertion front connectors (to be ordered separately), supporting flexible deployment in industrial sites; This module is certified by EN IEC 62061:2021 standard, with SIL2 safety integrity level, and meets the Category 3/PL d performance level requirements in EN ISO 13849-1:2015 standard. It can safely disconnect load groups and is suitable for automation control systems with high reliability requirements.

Technical specifcations for 6ES7522-1BH00-0AB0

Basic information

Brand and Model: SIEMENS 6ES7522-1BH00-0AB0

Product type: Digital output module

Series: SIMATIC S7-1500 series

Function: Mainly used to convert the digital signals inside the PLC into control signals for external devices, achieving control of the actuator.

2、 Electrical parameters

Number of output channels: 16 channels

Output type: transistor output

Output voltage: DC24V

Load current per channel: 0.5A

Load current per group: The 16 output channels of the module are divided into two groups of 8 channels each, with a maximum load current of 4A per group

Power consumption: about 2W (actual power consumption may vary depending on the working state)

3、 Mechanical parameters

Dimensions: Width x Height x Depth approximately 35mm x 147mm x 129mm (specific dimensions may vary slightly depending on product version)

Installation method: Standard DIN rail installation, convenient for on-site deployment and maintenance

Protection level: Possess certain protection capability and adapt to industrial site environment (specific protection level can refer to the product manual)

4、 Interface and Connection

Interface type: Screw type terminal block or plug-in front connector (front connector needs to be ordered separately)

Wiring method: Supports direct cable connection for easy connection with external devices

5、 Functional characteristics

Diagnostic function: Supports single channel diagnostic function, which can monitor the status of each output channel in real time, detect and handle faults in a timely manner

Status indication: Equipped with module fault indicator lights (DIAG, green and red), status indicator lights for each output (green LED), and fault indicator lights for each output (red LED), making it easy for users to intuitively understand the working status of modules and channels

Safety: Compliant with relevant safety standards, such as EN IEC 62061:2021 certification, with SIL2 safety integrity level and Category 3/PL d performance level requirements in EN ISO 13849-1:2015 standard, capable of safely disconnecting load groups

6、 Environmental adaptability

Working temperature range: -20 ℃ to+60 ℃, suitable for various industrial environment temperature changes

Storage temperature range: -40 ℃ to+85 ℃, ensuring the stability of the module during long-term storage

Environmental requirements: The module design meets industrial environmental standards and has certain dust, moisture, and earthquake resistance capabilities
