SIEMENS 6ES7518-4FP00-0AB0 New and Original High quality

6ES7518-4FP00-0AB0

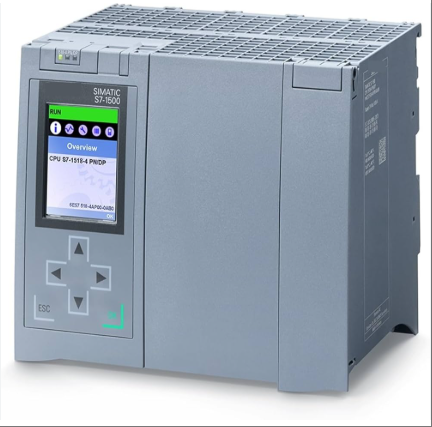

The 6ES7518-4FP00-0AB0 model product is a fail safe central processing unit (CPU 1518F-4 PN/DP) in the SIMATIC S7-1500F series. It is equipped with 9MB working memory (for programs) and 60MB data memory, and supports multi protocol communication through four major interfaces: PROFINET IRT (including dual port switches), PROFINET RT, PROFINET basic services, and PROFIBUS. It has 1ns bit level processing performance and needs to be used in conjunction with SIMATIC memory cards. This module supports single-layer configuration extension to 32 modules, and can display real-time overview information such as IP address and station name, as well as diagnostic data such as safety mode and download signature. It also provides operation functions such as IP address setting and date and time configuration. Its PROFINET IO IRT interface supports distributed I/O connection, and the PROFIBUS DP interface is compatible with the PROFIsafe protocol, suitable for centralized and distributed configuration scenarios.

Technical specifcations for 6ES7518-4FP00-0AB0

Basic information

Brand and Model: SIEMENS 6ES7518-4FP00-0AB0

Product Type: Fault Safe Central Processing Unit

Series: SIMATIC S7-1500F

2、 Storage parameters

Working memory: 9MB (for programs)

Data storage: 60MB

Memory card support: SIMATIC memory card is required as an additional storage device, supporting functions such as data logging and archiving

3、 Interface parameters

Interface 1: PROFINET IRT with dual port switch, supporting real-time communication

Interface 2: PROFINET RT, used for real-time communication

Interface 3: PROFINET basic services, providing basic network communication functions

Interface 4: PROFIBUS, supports PROFIBUS DP protocol, used for distributed I/O connections

4、 Performance parameters

Processing speed: The execution time of a single binary command can be as low as 1ns, with excellent processing capability

Scalability: Single layer configuration can support up to 32 modules (CPU+31 modules) to meet complex application requirements

5、 Display and diagnostic parameters

Display information: It can display overview information such as IP address, station name, device name, location identifier, etc. of the integrated interface, as well as diagnostic information such as security mode, overall signature and date of the last download, etc

Operation function: Supports setting IP address, date and time settings, selecting operation mode (such as resetting CPU to factory settings, disabling/enabling display screen, enabling protection level, etc.)

6、 Communication and Security Parameters

Communication protocol: Supports PROFINET IO IRT interface for distributed I/O connection through PROFINET, PROFIBUS DP interface for distributed I/O connection through PROFIBUS, and supports PROFIsafe protocol

Safety function: equipped with fault safety function, ensuring quick response in case of abnormal situations and protecting system safety

7、 Other parameters

Working voltage: 24V DC

Protection level: possessing a certain level of protection capability and adapting to the industrial site environment

Mechanical structure: modular design, supporting DIN rail installation

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
