SIEMENS 6ES7513-1AL02-0AB0 New and Original High quality

6ES7513-1AL02-0AB0

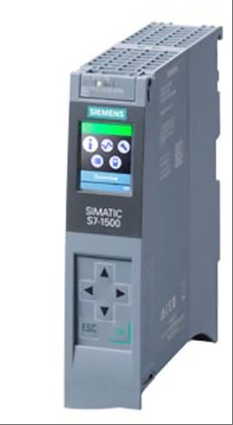

The 6ES7513-1AL02-0AB0 model product is the CPU module (CPU 1513-1PN) of Siemens S7-1500 series PLC, which has high-performance processing capability and flexible scalability. It adopts PROFINET industrial Ethernet communication interface, supports distributed I/O system integration, and has built-in 300KB working memory and 1.5MB data memory. It can be expanded to 32GB through SIMATIC memory card and is suitable for complex automation task control; The module integrates clock synchronization function and supports both distributed and centralized modes, providing 6 500ms cycle organization blocks (distributed) and 1ms cycle organization blocks (centralized). It is compatible with STEP 7 TIA Portal V17 (firmware V2.9) and above configuration tools, meeting the strict requirements for real-time performance and data processing capabilities in the field of industrial automation.

Technical specifcations for 6ES7513-1AL02-0AB0

Hardware and Features:

Model identification: CPU 1513-1PN， Hardware functional status FS03, firmware version V2.9.

Working voltage: 24V DC, allowable range 19.2V to 28.8V DC, with reverse polarity protection function.

Memory configuration: Integrated 300KB working memory (for programs), 1.5MB data storage, supports expansion to 32GB through SIMATIC memory cards.

I/O capacity: Supports 2048 IO module addresses, with 32KB of peripheral addresses allocated to each input/output terminal. The input/output capacity of a single subsystem is 8KB.

Communication interface:

PROFINET interface: Integrated dual port switch, supports PROFINET IO IRT communication, and meets the real-time requirements of distributed I/O systems.

Other protocols: Supports MODBUS TCP isochronous mode, provides S7 message function, can register 32 sites and configure 5000 programmable program messages.

Clock and synchronization:

Synchronization mode: Supports distributed and centralized clock synchronization, with a cyclic organization block period of 500ms in distributed mode and 1ms in centralized mode.

System integration capability:

Configuration tool: Compatible with STEP 7 TIA Portal V17 (firmware V2.9) and above versions, supporting configuration control through data groups.

Process function: Integrated motion control resources, supporting 800 process objectives, capable of controlling 5 axes (4ms cycle) or 10 axes (8ms cycle) under typical motion control cycles.

Diagnosis and maintenance:

Diagnostic function: Equipped with 1000 diagnostic buffer entries, supporting 500 records related to power outages.

Debugging support: 4 Trace can be configured, each Trace can store up to 512KB of data.

Display and operation: Equipped with a 3.45cm display screen and 8 operation buttons (including 2 operation mode buttons), it supports displaying module information such as IP address and station name.

Protection mechanism:

Access control: Provides user program protection, copy protection, module protection functions, supports password protection, and read-write permission grading.

Data Security: Supports I&M data recording (I&M0 to I&M3) to ensure equipment identification and maintain data integrity.

Environmental adaptability:

Temperature range: When installed horizontally, the operating temperature ranges from -25 ° C to 60 ° C (with the display screen turned off at 50 ° C), and when installed vertically, it ranges from -25 ° C to 40 ° C (with the display screen turned off at 40 ° C).

Altitude compatibility: Supports installation at a height of 5000m. If it exceeds 2000m, please refer to the manual to adjust the parameters.

Storage conditions: Transportation/storage temperature range -40 ° C to 70 ° C.

Power and current:

Power consumption: Backplane bus feeding power is 10W, typical power consumption is 5.5W, and power loss is 5.7W.

Current parameters: rated current consumption of 0.7A, maximum current consumption of 0.95A, peak current of 1.9A when connected.

Signal and Interface:

Input current: rated value of 0.02A · s, supports high-speed counter function.
