6ES7512-1DK01-0AB0

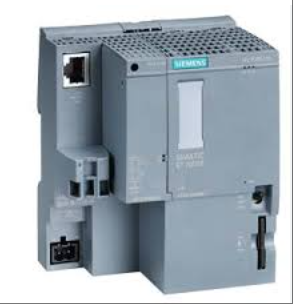

The 6ES7512-1DK01-0AB0 model product is the CPU 1512SP-1 PN central processing unit in the Siemens S7-1500 series PLC, designed specifically for distributed automation systems. It has 200KB working memory and 1MB data memory, supports high-speed real-time communication through PROFINET IRT interface, integrates 3-terminal AC switch function, and can connect to ET 200SP distributed I/O system. This module supports hot swappable functionality, allowing for module replacement while in operation, and also has clock synchronization mode, suitable for industrial scenarios that require high-precision time synchronization. Its hardware supports I&M data storage and can be configured through STEP 7 TIA Portal software. It is compatible with programming environments since version V16 and meets the needs of modern industrial automation for flexible configuration and efficient maintenance.
Technical specifcations for 6ES7512-1DK01-0AB0
Memory parameters
Work memory: Integrated 200KB for storing program code.
Data storage: Integrated 1MB for storing operational data, supporting expansion up to a maximum of 32GB through SIMATIC memory cards.
2、 Processing performance parameters
Bit operation time: 48ns, achieving fast logic control.
Word processing time: 58ns, meeting data processing requirements.
Fixed point computation time: 77ns, supports efficient numerical calculations.
Floating point operation time: 307ns, ensuring the accuracy of complex algorithm execution.
3、 Communication interface parameters
Main interface type: Integrated with one PROFINET IRT three port switch, supporting real-time communication.
Port expansion capability: It can be extended to three PROFINET interfaces through a bus adapter, enabling multi device networking.
4、 Operating environment parameters
Working temperature range: 0 ℃ to 55 ℃, suitable for conventional industrial environments.
Protection level: IP20, suitable for installation inside control cabinets.
5、 Functional characteristic parameters
Hot swappable support: allows module replacement while running, reducing maintenance downtime.
Clock synchronization mode: Built in high-precision clock synchronization function to meet the time synchronization requirements of distributed systems.
I&M data storage: supports device identification, maintenance, and other data storage for asset management.
STEP 7 TIA Portal compatibility: Starting from version V16, it supports engineering configuration and provides a unified programming environment.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
