6ES7512-1CK01-0AB0

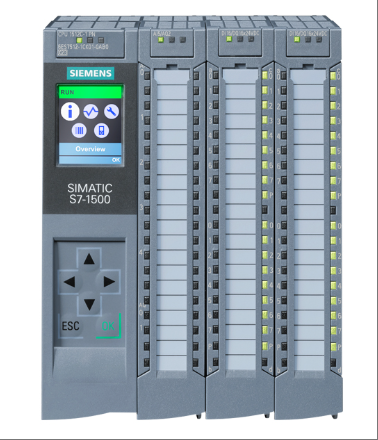

The 6ES7512-1CK01-0AB0 model product is a compact CPU module (CPU 1512C-1 PN) from Siemens SIMATIC S7-1500 series, designed specifically for medium to large control requirements. It integrates 250KB program memory and 1MB data memory, equipped with 32 digital inputs, 32 digital outputs, 5 analog inputs, and 2 analog output interfaces. It supports 6 high-speed counters and 4 PTO/PWM/frequency outputs, adopts PROFINET IRT communication interface and built-in dual port switch, with 48ns bit processing capability, supports I&M data recording, clock synchronization, and STEP 7 TIA Portal V17 (firmware V2.9) and above integrated configuration, and is suitable for chemical, electronic, electrical, and other industries. The automation control scenario in the industry achieves flexible configuration through modular design and SIMATIC memory card expansion capability, complies with RoHS directive, and is manufactured using environmentally friendly materials.
Technical specifcations for 6ES7512-1CK01-0AB0
Processor and Memory:
Equipped with a 32-bit CPU, with a main frequency of 300MHz and high-speed processing capability.
Featuring 128MB RAM and 256MB Flash memory, it provides ample program and data storage space, supporting the operation of complex applications.
Interface and Communication:
Integrate 2 PROFINET interfaces and 1 RS485 interface, supporting efficient data exchange and multiple industrial network protocols.
Includes 1 IM 151 interface for easy connection with other devices.
I/O configuration:
Provide 32 digital inputs and 32 digital outputs to meet large-scale data input and output requirements.
Equipped with 5 analog inputs and 2 analog outputs, suitable for scenarios that require analog signal processing.
Counting and pulse output:
Supports 6 high-speed counters, suitable for applications that require precise counting.
Provide 4 high-speed output channels, supporting PTO/PWM/frequency output to meet motion control requirements.
Performance and processing time:
Equipped with 48ns bit processing capability, ensuring real-time response and high efficiency.
Modular design facilitates expansion and maintenance, and users can flexibly configure according to their needs.
Environmental adaptability:
The working temperature range is -40 ℃ to+70 ℃, suitable for harsh industrial environments.
Adopting a wide temperature design to ensure stable operation at extreme temperatures.
Software and compatibility:
Support STEP 7 TIA Portal V17 (firmware V2.9) and above for integrated configuration.
Compatible with multiple programming and configuration tools, facilitating system integration and development.
