SIEMENS 6ES7460-3AA01-0AB0 New and Original High quality

6ES7460-3AA01-0AB0

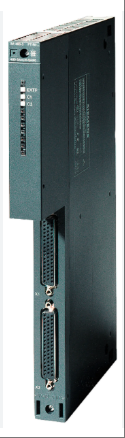

The 6ES7460-3AA01-0AB0 model product is a communication processing module for Siemens SIMATIC S7-400 series PLC. As the sending interface module of the connection component IM 460-3, its core function is to achieve data coupling and communication expansion between multiple racks in a distributed system architecture. This module supports connection with expansion racks through K-bus, with a maximum transmission distance of 102 meters. It adopts a modular design and is compatible with the hardware ecosystem of S7-400 series PLCs. It can be seamlessly integrated into existing automation systems. The product has industrial grade electrical performance, with a working temperature range of 0 ° C to 60 ° C and a protection level that meets industrial field application standards. It is suitable for stable operation in complex environments. By expanding communication ports, it can flexibly adapt to multiple industrial protocols, meet the real-time data transmission and system expansion needs of manufacturing, energy management, transportation and other fields, and is a key component in building high reliability distributed control systems.

Technical specifcations for 6ES7460-3AA01-0AB0

Basic Information

Brand and Model: Siemens, Model 6ES7460-3AA01-0AB0.

Product positioning: As a Send IM module, it is used for extended coupling of distributed systems and enables data communication between multiple racks.

2、 Electrical and interface parameters

Power supply voltage: 24V DC, providing stable working power for the module.

Power consumption: The typical power consumption is about 3.5W, and low-power design helps save energy and reduce heat dissipation requirements.

Communication protocol: Supports multiple protocols such as PROFINET and TCP/IP, and can seamlessly communicate with other Siemens devices.

Interface type: It has an interface for connecting expansion racks, such as connecting to expansion lines through 468-1 connection cables, and can be inserted into the central controller.

3、 Physical characteristics

Size: Adopting standard modular design, it is easy to install and integrate into the rack of S7-400 series PLC.

Weight: Net weight of approximately 0.829kg, compact and lightweight in size.

Protection level: Complies with industrial grade protection standards and adapts to the installation environment inside the control cabinet.

4、 Functional characteristics

Scalability: It can connect up to 8 expansion racks, with no more than 4 expansion units per interface, and each central controller can insert up to 6 IM 460-3 interface templates to meet the expansion needs of large-scale systems.

Transmission distance: Distributed coupling distance can reach 102m, suitable for large-scale industrial site layout.

Bus transmission: Transmit P bus and C bus to the expansion unit to ensure the stability and real-time performance of data transmission.

Indicator lights and status display: Equipped with 3 light-emitting diodes (LEDs) for fault indication, such as external faults (EXTF LED red light on), expansion unit operating status (C1, C2 green light), etc., making it convenient for users to quickly diagnose problems.

5、 Environmental adaptability

Working temperature: 0 ° C to 60 ° C, capable of stable operation within a wide temperature range and adapting to different industrial environments.

Environmental adaptability: It has good seismic performance and can ensure the continuity and stability of operation in complex working environments.

6、 Other characteristics

Compatibility: Can only be used with the IM 461-3 receiving interface template to jointly build a distributed system.

Compliance: Compliant with environmental requirements such as RoHS directive, using lead-free soldering process to reduce environmental impact.
