6ES7455-0VS00-0AE0

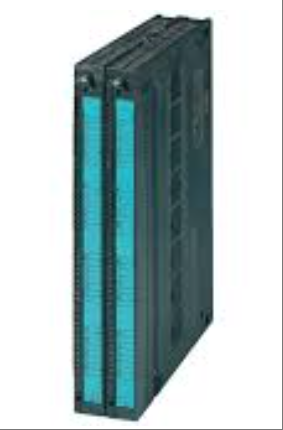

The 6ES7455-0VS00-0AE0 model product is a Siemens FM 455C closed-loop control template, belonging to the SIMATIC S7-400 series, designed specifically for general closed-loop control tasks. It has 16 analog outputs and is suitable for continuous action control scenarios such as temperature, pressure, and flow. It supports connecting encoders and actuators through a front connector and is equipped with LED fault indication and backup operation indication functions. It can be integrated with the SIMATIC S7-400 system to meet the high-precision control requirements in the industrial automation field.
Technical specifcations for 6ES7455-0VS00-0AE0
Brand and Model:
Brand: SIEMENS
Model: 6ES7455-0VS00-0AE0
Product type:
SIMATIC S7-400 FM 455C closed-loop control module
Channel configuration:
Analog input: 8/16 channels
Digital input: 16 channels
Analog output: 16 channels
Power requirements:
Working voltage: 24V DC
Environmental adaptability:
Working temperature range: 0-60 ° C
Environmental humidity range: 10-95%
Pressure range: 1080-795 hPa
Immunity: Complies with EN 61000-6-2 standard
Structure and Installation:
Structural form: modular
Installation method: on-site installation or control room installation
Net weight: approximately 1.578kg
Packaging size: 23.30 x 30.30 x 6.20 cm
Functional features:
Used for general closed-loop control tasks such as temperature control, pressure control, flow control, etc
Supports multiple encoder types, including thermocouples Pt100、 Voltage encoder, current encoder
Provide LED indicator lights for displaying internal faults, external faults, and digital input status
Support backup mode, the controller can run continuously and independently in case of CPU failure or stoppage
Configuration and Programming:
Parameter assignment and programming require the use of configuration software packages
Standard functional blocks that support data exchange with CPU
Certification and Standards:
Product certification: CCC
Complies with relevant international and industry standards
