SIEMENS 6ES7450-1AP00-0AE0 New and Original High quality

6ES7450-1AP00-0AE0

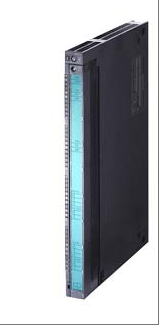

The 6ES7450-1AP00-0AE0 model product is a functional module (FM 450-1) of Siemens S7-400 series PLC, designed specifically for industrial automation control. It has counting function and integrates 2-channel input and output interfaces, supporting 24V DC power supply. The input voltage range is -28.8V to+28.8V (signal "0" and "1"), and the output voltage range covers the maximum 3V of signal "0" to the minimum 2L+(-1.5V) of signal "1". The module is equipped with 6 digital input terminals (including door opening/closing, counter recording function) and 6 binary output terminals. It uses optocouplers to achieve digital input/output potential isolation, allowing potential differences between different circuits to reach DC 75V/AC 60V. It is compact. Designed (25mm wide x 290mm high x 210mm deep, approximately 650g) for easy integration, compatible with multiple industrial bus protocols, and compatible with S7-400 The host and other expansion devices seamlessly collaborate, simplifying the configuration process through configuration package CDs, suitable for high-precision data acquisition and control tasks in complex industrial environments.

Technical specifcations for 6ES7450-1AP00-0AE0

Basic parameters

Brand and Model: SIEMENS 6ES7450-1AP00-0AE0

Product type: SIMATIC S7-400 functional module (FM 450-1)

Usage: Used for counting function, with 2 channels

Attachment: Includes configuration package CD

2、 Power Supply and Voltage

Auxiliary voltage: 1L+, load voltage 2L+, rated value (DC) 24V

Allowable range: Lower limit (DC) 20.4V, dynamic 18.5V; Upper limit (DC) 28.8V, dynamic 30.2V

Reverse polarity protection: Both load voltages 1L+and 2L+have reverse polarity protection

3、 Input and output

Digital input:

Quantity: 6 binary input terminals

Function: 1 for door opening, 1 for door closing, and 1 for counter recording

Input voltage: -28.8V to+5V for signal "0",+11V to+28.8V for signal "1"

Input current: For signal "1", the typical value is 9mA

Input delay: When the input voltage is at the rated value, there is a specific input delay

Digital output:

Quantity: 6 binary output terminals

Functional/anti short circuit: It has anti short circuit function and supports electronic pulse

Output voltage: The maximum value for signal "0" is 3V, and the minimum value for signal "1" is 2L+(-1.5V)

Output current: For signal "1", the rated value is 0.5A, the allowable range is 0 to 60 ℃, and the maximum value is 0.6A

Output delay under resistive load: maximum value from "0" to "1" is 300 µ s

4、 Sensor power supply and power loss

Sensor power supply: Supports 5V and 24V sensor power supply, with 5V sensor power supply having short-circuit protection function

Power loss: Typical value is 9W

5、 Counter and Performance

Number of counter inputs: 2

Counter bits: 32 bits or+/-31 bits

Counting frequency: The maximum value can reach 500kHz (depending on the input signal type and parameter settings)

Parameter comment: The occupied dual address is 64 bytes/64 bytes

6、 Potential isolation and insulation

Potential isolation: Digital inputs, digital outputs, and counters all have potential isolation functions, which are achieved using optocouplers

Allowable potential difference: up to DC 75V/AC 60V between different circuits

Insulation test: Conduct insulation test using 500V

7、 Connection technology and size

Required front plug: 1x 48 pin

Dimensions: Width 25mm, Height 290mm, Depth 210mm

Weight: Approximately 650g
