SIEMENS 6ES7416-1XJ00-0AB0 New and Original High quality

6ES7416-1XJ00-0AB0

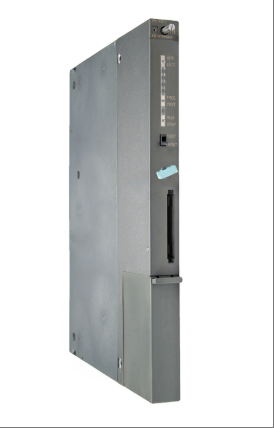

The 6ES7416-1XJ00-0AB0 model product is a high-performance CPU module in the Siemens S7-400 series PLC, designed specifically for medium to large automation control systems. It adopts a modular architecture to support distributed I/O expansion, integrates PROFIBUS DP interface and MPI multi-point interface for efficient on-site communication, and is equipped with 1MB working memory and 64MB loading memory (expandable to 512MB). It supports LAD/STL/FBD language development in STEP 7 V5. x programming environment. Its 70ns bit operation processing speed and 0.3 μ s floating-point computing capability can meet complex process control requirements. It is compatible with S7-400 series digital/analog modules, communication processors, and functional modules, and supports PROFINET Implementing redundant system configuration, widely used in real-time control and data acquisition scenarios in process control, discrete manufacturing, and infrastructure fields, meets the stringent requirements for high reliability and computing performance in the field of industrial automation.

Technical specifcations for 6ES7416-1XJ00-0AB0

Core performance parameters

Working memory capacity: 1MB, supports high complexity program execution, meets the requirements of large-scale automation systems.

Loading memory capacity: Built in 512MB (expandable to 512MB or more), flexible storage expansion is achieved through MMC card.

Instruction processing speed:

Bit operation instruction execution time: 30ns

Floating point operation instruction execution time: 54ns

Supports processing millions of instructions per second, ensuring high-speed real-time control.

2、 Expansion and communication capabilities

I/O expansion capability: Supports distributed I/O expansion through the ET 200 series, with a maximum connection of 65536 digital I/O points or 4096 analog channels.

Communication interface:

Integrate 1 MPI interface (supporting 32 nodes, with a speed of 12Mbps)

Integrate 1 PROFIBUS DP interface (supporting 125 slave stations at a speed of 12Mbps)

Support PROFINET CBA/IO functionality (requires cooperation with modules such as CP443-1).

3、 System compatibility and software support

Programming software: compatible with STEP 7 V5. x and above versions, supporting LAD/STL/FBD programming languages.

Software Block Support: Supports up to 16000 Function Blocks (FB), 16000 Function Blocks (FC), and 16000 Data Blocks (DB).

Data Block Number: Supports unified numerical numbering from 1-16000 to improve project efficiency.

4、 Hardware and electrical characteristics

Power supply: 24V DC (allowable range 20.4-28.8V), typical power consumption of 15W.

Working temperature range: -25 ° C to+70 ° C, suitable for extreme industrial environments.

Protection level: IP20, suitable for indoor environments without conductive dust.

Installation method: DIN rail installation, modular design supports flexible configuration.

5、 Function and Safety

Redundancy support: Supports S7-400H redundant system configuration to enhance system availability.

Write protection function: Implement program and data write protection through SFC 109 "Protect".

Factory Reset: Supports restoring factory settings through the Factory Reset function.

Storage card management: supports serial number reading and firmware network upgrades to ensure technical security.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

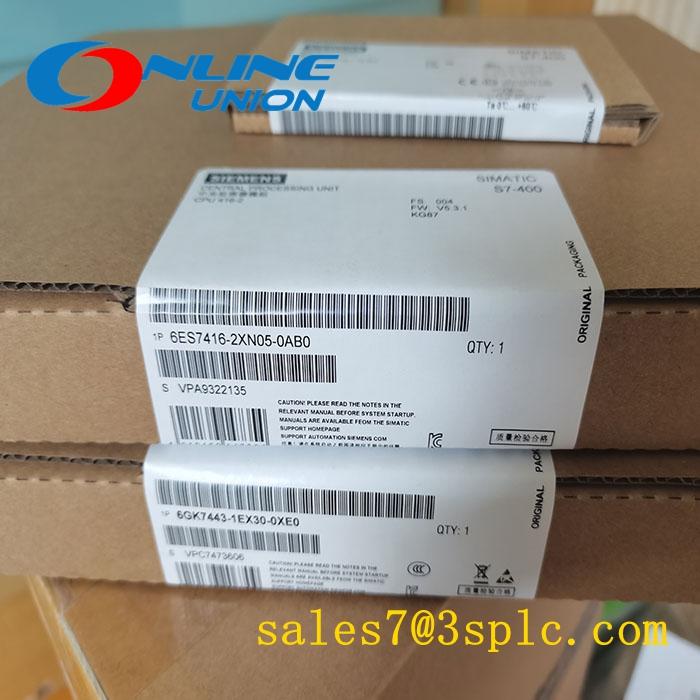

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
