SIEMENS 6ES7412-2XJ05-0AB0 New and Original High quality

6ES7412-2XJ05-0AB0

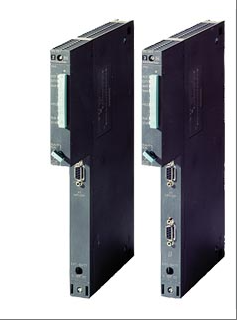

The 6ES7412-2XJ05-0AB0 model product is the CPU 412-2 central processing unit module in the Siemens S7-400 series PLC. The module has a main memory of 512 KB (including 256 KB encoding and 256 KB data), supports MPI/DP interface (rate of 12 MBit/s) and PROFIBUS DP interface, and is suitable for building distributed automation systems in the mid to high performance range. Its modular fanless design, high electromagnetic compatibility, and seismic resistance, combined with flexible expansion capabilities and rich communication interfaces (such as building high-speed distributed systems through PROFIBUS), can be widely used in industrial fields such as general machinery, automotive manufacturing, three-dimensional warehouses, machine tools, process control, etc., meeting the reliability and scalability requirements of complex control tasks.

Technical specifcations for 6ES7412-2XJ05-0AB0

Brand and Model: SIEMENS, 6ES7412-2XJ05-0AB0, belonging to the SIMATIC S7-400 series CPU 412-2 central processing unit.

Main memory: 512 KB, of which 256 KB is used for program storage and 256 KB is used for data storage.

Interface type:

MPI/DP interface, with a maximum data transmission rate of 12 Mbit/s.

PROFIBUS DP interface, used to connect distributed I/O or communicate with operation panel (OP) or programming device (PG/PC).

Processing speed: The CPU only takes 0.75 microseconds to execute a binary instruction and has high-speed processing capability.

Scalability: Supports up to 65536 digital I/O and 4096 analog I/O, meeting control requirements of different scales and complexities.

Diagnostic buffer: The last 120 fault and interrupt events can be stored in the FIFO buffer, with a programmable number of entries for easy troubleshooting.

Real time clock: CPU diagnostic messages have date and time labels, supporting real-time monitoring and recording.

Memory card support: Used to expand the built-in loading memory, which includes S7-400 configuration data in addition to programs.

Block protection: User programs are password protected to prevent unauthorized access and ensure data security.

Integrated HMI services: Users only need to define data sources and destinations for HMI devices, and data is automatically transmitted through the system periodically.

Integrated communication function: Supports PG/OP communication, global data communication, S7 standard communication, and S7 communication to meet diverse communication needs.

Engineering configuration method: Supports STEP 7 programming environment, and uses the "Hardware Configuration" tool to set the properties and responses of hardware, including CPU, in the S7-400 system.

Power supply voltage and power consumption: The rated operating voltage is 24V DC (there is also information showing support for 200V-240V ± 10% AC, but 24V DC is used here as this model is more commonly used in low-voltage DC systems), and the typical power consumption is 4.5W.

Working temperature and humidity: The working environment temperature range is usually -20 ° C to+60 ° C (some information shows -40 ° C to+100 ° C, but the more common range is taken here), and the relative humidity range is generally 5% to 95% (no condensation).

Dimensions and Weight: The dimensions are approximately 12.80 x 15.30 x 5.20 cm (slight differences may occur from different sources), and the weight ranges from 0.713 Kg to 5.42 Kg (specific weight may vary due to configuration and packaging).

Protection level: It has a high protection level, such as IP65 (the specific level may vary depending on the product version and configuration), and is suitable for harsh industrial environments.
