6ES7407-0DA02-0AA0

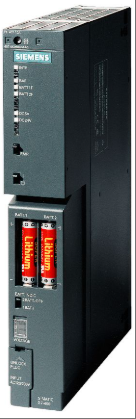

The 6ES7407-0DA02-0AA0 model product is a power module for SIMATIC S7-400 series PLC, designed specifically for industrial automation control systems, providing stable and reliable DC power output, and supporting the power supply needs of S7-400 series central processing units (such as CP414-3, CP416-3, etc.) and other modules. This module adopts a modular structure design, with high electromagnetic compatibility, impact resistance, and vibration resistance, suitable for harsh industrial environments such as automotive manufacturing, process engineering, and power generation and distribution. It supports distributed structure and flexible expansion, and can be paired with redundant design to achieve high availability automation systems, ensuring uninterrupted power supply for key equipment in complex process flows. It is the core component for building automation task solutions in the mid to high-end performance range.
Technical specifcations for 6ES7407-0DA02-0AA0
Input parameters:
Input voltage: Supports wide range AC input, rated at 120/230V AC, allowing input voltage range from 85V to 264V AC; Simultaneously supports DC input, with a rated value of 110/230V DC and an allowable input voltage range of 88V to 300V DC.
Input current: At 120V AC, the rated input current is 0.55A; at 230V AC, the rated input current is 0.31A.
System frequency: The rated value is 50/60Hz, and the allowable frequency range is 47Hz to 63Hz.
Output parameters:
Output voltage: Provides stable 5V DC and 24V DC output voltages.
Output current: The rated output current of 5V DC is 4A, and the 24V DC output current can support different currents according to specific configurations (for example, under some configurations, the 24V DC output current is 0.5A, but the total output capacity needs to be determined based on the specific model).
Power consumption and efficiency:
Typical power consumption: approximately 46.5W.
Power loss: The typical value is 13.9W.
Physical parameters:
Dimensions: Width of 25mm, height of 290mm, depth of 217mm.
Weight: Approximately 800g.
Installation method: Modular design, occupying 1 slot, usually installed on the leftmost side of the rack (starting from slot 1).
Environmental adaptability:
Working temperature range: The specific temperature range needs to refer to the product manual, but it is usually designed for industrial environments and can withstand certain temperature fluctuations.
Protection level: Fully enclosed design, cooled by natural ventilation, suitable for industrial site environment.
Functional features:
Voltage Conversion: Convert AC or DC network voltage to the 5V DC and 24V DC operating voltages required by SIMATIC S7-400 PLC.
Redundancy design support: It can be combined with other power modules to achieve redundant power configuration and improve system reliability.
Status indication: The front panel is equipped with light-emitting diodes to indicate internal faults, 5V and 24V DC output voltage status, and backup battery voltage status.
Control switches: provide fault confirmation buttons, output voltage on/off switches, battery monitoring switches, and network voltage selector switches.
Compatibility and Scalability:
Compatibility: Designed specifically for SIMATIC S7-400 series PLCs, it provides power to all templates in the central processing unit and expansion unit through the backplane bus.
Scalability: Supports distributed architecture and can expand the number of power modules according to system requirements (attention should be paid to current allocation limitations in redundant configurations).
