6ES7405-0RA01-0AA0

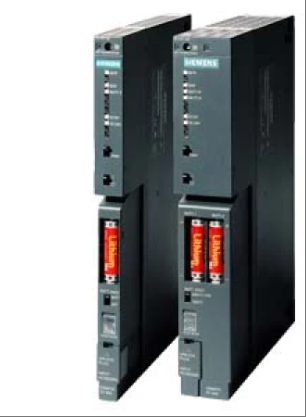

The 6ES7405-0RA01-0AA0 model product is a PS405 power module designed specifically for the S7-400 series PLC. It has a rated output current of 20A and can stably provide dual voltage outputs of DC 24V and DC 5V. It supports a wide range of DC inputs from 19.2V to 72V and is compatible with multiple voltage levels. It achieves industrial grade reliability through input side overvoltage/undervoltage protection, output side short circuit protection, and anti no-load design. Its compact modular structure is suitable for control room installation scenarios and meets IP20 protection standards, making it suitable for power supply scenarios in complex electromagnetic environments for automation control systems.
Technical specifcations for 6ES7405-0RA01-0AA0
Model: 6ES7405-0RA01-0AA0
Type: Industrial control equipment, belonging to the PS405 series power module
Function: Used to convert AC or DC network voltage into the required 5V DC and 24V DC operating voltage, providing stable and reliable power supply for SIMATIC S7-400 series PLC
2、 Electrical parameters
Rated input voltage: Supports wide range DC input, specifically DC24V/48V/60V, allowing input voltage range from DC19.2V to 72V
Rated input current: At DC24V input, the rated input current is 2A (specific value may vary with input voltage)
Rated output voltage: Provides dual voltage outputs of 5V DC and 24V DC
Rated output current: 5V DC output rated current is 20A, 24V DC output rated current is 0.5A (or dynamically allocated according to load requirements)
Input power: Rated input power is 175W
Module power consumption: The module's own power consumption is 51W
3、 Environmental parameters
Working temperature: typically supports working within an ambient temperature range of 0 ℃ to 60 ℃ (specific values may vary depending on product batch or usage environment)
Protection level: IP20, Suitable for indoor environments such as control rooms
4、 Structure and Installation
Structural form: Modular design, easy to integrate into the rack of S7-400 series PLC
Installation method: Control room installation, supporting horizontal or vertical track installation
Occupation of slots: This module occupies 3 slots
5、 Protection and Diagnosis
Protection function: equipped with input side overvoltage/undervoltage protection, output side short circuit protection, and anti no-load design to ensure the safety of equipment and load protection in abnormal situations
Diagnostic function: Display the working status and fault information of the module through the status indicator lights on the module (such as INTF, BAF, 5VDC, 24VDC, etc.), which facilitates user troubleshooting and maintenance
6、 Other characteristics
Hot swappable function: Supports hot plugging, making it easy to replace and maintain modules without shutting down the machine
Compatibility: Compatible with engineering configuration software such as STEP 7 TIA Portal, making it easy for users to configure and program the system
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
