SIEMENS 6ES7400-0HR51-4AB0 New and Original High quality

6ES7400-0HR51-4AB0

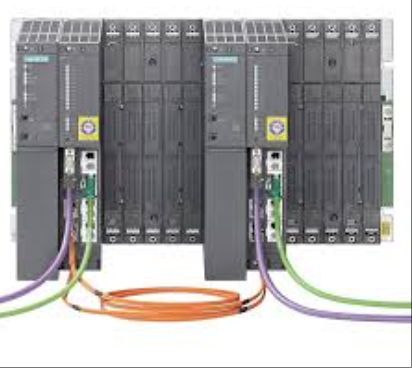

The 6ES7400-0HR51-4AB0 model product is a high availability redundant controller kit for the SIMATIC S7-400H system. It adopts a dual CPU 412-5H redundant architecture and integrates one UR2-H communication module, two PS 405 10A power modules (supporting DC 24/48/60V wide voltage input), four synchronization modules, and two 1-meter synchronous cables to achieve CPU level hot standby switching and millisecond level fault recovery. This kit builds a highly reliable industrial network using the PROFIBUS DP/PROFINET IO protocol, supports clock synchronization and data mirroring functions, and is suitable for scenarios such as process industries and rail transit that require strict system continuity. Its modular design is compatible with the S7-400 series I/O modules and can achieve a compact layout through rail installation. Paired with the TIA Portal engineering platform, it can complete the full lifecycle management from hardware configuration to fault diagnosis, while complying with the IEC 61508 SIL 3 functional safety standard and providing complete redundant system certification documents.

Technical specifcations for 6ES7400-0HR51-4AB0

Hardware composition

CPU module: Includes 2 redundant processors 412-5H for high availability control and supports automatic fault switching.

Communication module: equipped with one UR2-H communication module for synchronizing data exchange between redundant CPUs.

Power module: Integrated with 2 PS 405 10A power modules, supporting DC 24/48/60V wide voltage input and providing redundant power supply guarantee.

Synchronization module and cable: Includes 4 synchronization modules and 2 1-meter synchronization cables to ensure real-time and reliable data synchronization between CPUs.

Backup Battery: Equipped with 4 backup batteries to protect RAM data and prevent data loss in the event of a power outage.

2、 Performance parameters

Storage capacity: The CPU 412-5H has 1MB of working memory (512KB code+512KB data) to meet the requirements of complex control programs.

Processing speed: The bit processing speed is 31.25ns, ensuring high-speed logical operations and real-time control capabilities.

Communication interface: Integrated with MPI/DP, PROFIBUS DP, PROFINET interfaces, as well as 2 dedicated synchronization module interfaces, supporting multi protocol communication and redundant synchronization.

3、 Environmental adaptability

Working temperature: Supports wide temperature operation from 0 ° C to 60 ° C, suitable for high temperature industrial environments.

Protection level: The module protection level is IP20, suitable for installation inside control cabinets.

Mechanical structure: Modular design, supporting DIN rail installation, convenient for system expansion and maintenance.

4、 Functional characteristics

Redundancy function: Through dual CPU hot standby and synchronization modules, millisecond level fault switching is achieved to ensure continuous system operation.

Clock synchronization: Supports high-precision clock synchronization to ensure time consistency in distributed systems.

Diagnostic capability: Provides real-time diagnostic function, can monitor the status of modules such as CPU, power supply, communication, etc., and quickly locate faults.

5、 Compatibility and Scalability

System compatibility: Seamless integration with S7-400 series I/O modules and functional modules, supporting distributed I/O architecture.

Scalability: Supports increasing I/O points through rack expansion to meet the needs of applications of different scales.

Programming support: Compatible with TIA Portal engineering platform, supporting multiple programming languages such as LAD, STL, SCL, etc.

6、 Certification and Standards

Safety certification: Compliant with IEC 61508 SIL 3 functional safety standards, suitable for industrial scenarios with high safety requirements.

Environmental compliance: Compliant with the RoHS directive to ensure product environmental compliance.

Electromagnetic compatibility: Through standards such as EN 55032 Class B, it has strong anti-interference ability.
