SIEMENS 6ES7365-0BA00-0AA0 New and Original High quality

6ES7365-0BA00-0AA0

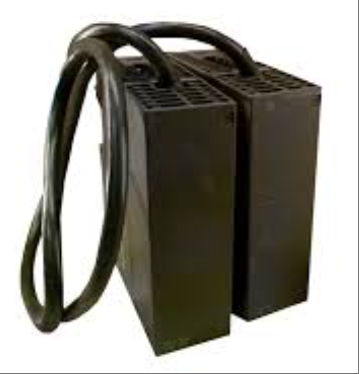

The 6ES7365-0BA00-0AA0 model product is the IM365 interface module of Siemens S7-300 series PLC, which is used to achieve centralized local expansion of S7-300 system. Through paired configuration (including 1 sending module and 1 receiving module) and 1-meter connecting cable, it supports direct connection between the host rack and the expansion rack. The expansion rack only supports installation of I/O modules (such as digital/analog input/output modules), and can expand up to 8 modules. The expansion rack does not require additional DC 24V power supply and is directly powered by the CPU backplane bus. The backplane current of the expansion rack and the host rack share the total limit (usually the total power supply of the CPU backplane current is 1.2A, and each rack consumes up to 0.8A when using IM365 expansion), which is suitable for the host rack. Industrial automation scenarios that are installed close to the expansion rack (≤ 1 meter) can effectively solve host rack I/O issues The problem of insufficient points meets the expansion requirements of input and output capacity for small and medium-sized control systems.

Technical specifcations for 6ES7365-0BA00-0AA0

Basic information

Product type: IM365 interface module, used for S7-300 system expansion.

Function purpose: To achieve centralized expansion of the host rack and expansion rack, suitable for scenarios where the distance between racks is close (≤ 1m).

Paired configuration: includes 1 sending module (IM365 Send) and 1 receiving module (IM365 Receive), interconnected through a 1-meter connecting cable.

2、 Electrical parameters

Working voltage: 24V DC, compatible with S7-300 system power standard.

Backplane bus current: The maximum current input from the 5V DC backplane bus is 100mA, and the typical power consumption is 0.5W.

Scalability:

Number of expansion racks: Only one expansion rack is supported.

Module quantity: The expansion rack can accommodate up to 8 I/O modules.

Backplane current limit: The total current of the CPU backplane is 1.2A, and each rack can consume a maximum of 0.8A. It is necessary to ensure that the total current does not exceed the limit.

3、 Structure and Installation

Module dimensions: length x width x height 125mm x 40mm x 120mm, weight approximately 0.58kg.

Installation method: DIN rail installation, compact structure, compatible with S7-300 modular design.

Protection level: IP20, suitable for industrial control cabinet environment.

4、 Bus and compatibility

Bus type: The expansion rack only supports P-bus (i.e. IO bus) and only allows installation of I/O modules (such as digital/analog input/output modules).

Incompatible modules: Communication processors (CP), functional modules (FM), and other modules that require K-bus cannot be installed in the IM365 expansion rack.

5、 Environmental adaptability

Working temperature: -20 ° C to+60 ° C, meeting the wide temperature requirements of industrial sites.

Storage temperature: -40 ° C to+75 ° C, suitable for extreme storage conditions.

Relative humidity: 5%~95% (no condensation), ensuring stability in high humidity environments.

6、 Certification and Standards

Compliance: Compliant with EU RoHS 2011/65/EU directive, restricting the use of hazardous substances in electronic and electrical equipment.

Export control: The ECCN code is EAR99H, which complies with global trade compliance requirements.

7、 Application Fields

Automotive industry: Control robots, transmission lines, stamping machines and other equipment to achieve efficient production.

Packaging industry: Coordinate packaging machines, labeling machines, sealing machines and other equipment to improve packaging efficiency and quality.

Material handling: Connect PLC with motor drivers and sensors to optimize warehousing and logistics automation.

General industrial automation: Expand the I/O points of PLC to adapt to complex control requirements.
