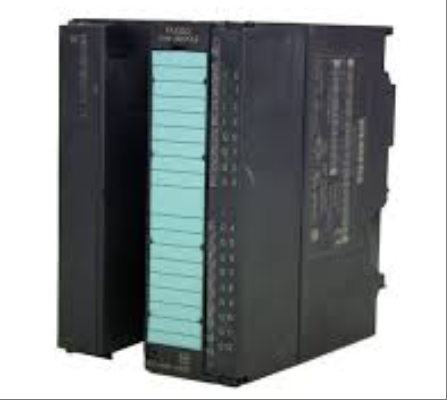

SIEMENS 6ES7352-1AH00-0AE0 New and Original High quality

6ES7352-1AH00-0AE0

The 6ES7352-1AH00-0AE0 model product is an electronic cam controller module for Siemens S7-300 series PLC (the actual mainstream model is 6ES7352-1AH02-0AE0, and the 0AH00 suffix may be a special version or customized model). It belongs to the functional module (FM) category of SIMATIC S7-300, adopts modular design, adapts to the distributed I/O architecture of S7-300, and achieves high-speed and high-precision motion trajectory planning through integrated cam control algorithms. It supports multi axis synchronous control and complex electronic cam curve generation, and can work together with speed control axis, positioning axis, and external encoder. It is suitable for industrial scenes that require precise motion control such as packaging machinery, printing equipment, textile machinery, etc. Its hardware interface is compatible with PROFIBUS DP or PRO. FINET communication protocol, via STEP 7 The engineering configuration tool implements parameterized configuration to meet the automation application requirements with high requirements for program scope, processing speed, and process functionality.

Technical specifcations for 6ES7352-1AH00-0AE0

Basic information

Brand and model: SIEMENS, model 6ES7352-1AH02-0AE0 (due to limited information on 6ES7352-1AH00-0AE0, here we take the functionally similar 0AH02 model as an example).

Product type: Electronic cam controller module (FM352) in S7-300 series.

Function positioning: Achieve precise cam control, SSI/incremental/absolute value acquisition, suitable for high-speed motion control scenarios.

2、 Electrical parameters

Power supply voltage: 24V DC, meeting the power supply needs of industrial automation equipment.

Input signal: Supports SSI absolute encoder, incremental encoder (symmetric/asymmetric), 2-wire sensor, etc.

Output signal: Equipped with digital input/output function, 12 integrated digital inputs/8 digital outputs.

Signal frequency:

Incremental encoder (symmetrical) maximum input frequency: 1MHz (5V differential signal, RS422 interface).

Incremental encoder (asymmetric) maximum input frequency: 50kHz (24V interface, 50kHz for cable length of 25m, 25kHz for 100m).

Absolute value encoder (SSI) maximum clock frequency: 1MHz, maximum shielded cable length 1320m (at 125kHz).

3、 Physical parameters

Dimensions: Width 80mm, height 125mm, depth 120mm, compact design saves space.

Product weight: Approximately 0.464kg (some data shows 0.55kg, possibly due to configuration differences).

Installation method: Suitable for DIN rail installation, easy to deploy on site.

Protection level: IP20, suitable for industrial environments without condensation.

4、 Functional characteristics

Cam control: supports multi axis synchronous control to achieve complex trajectory planning.

Encoder compatibility: Compatible with various encoder types such as SSI, incremental, absolute, etc.

Electrical isolation: Input/output channels are electrically isolated to enhance the system's anti-interference ability.

Programming support: Programming through LAD or FBD, the instruction set includes bit instructions, timers, counters, etc.

Scalability: Modular design supports custom function extensions to meet diverse needs.

5、 Environmental adaptability

Working temperature: -25 ℃ to 70 ℃ (some data shows -10 ℃ to+40 ℃, may be due to version differences).

Storage temperature: -40 ℃ to 85 ℃.

Environmental humidity: 5% to 95% (no condensation).

Protection capability: high electromagnetic compatibility, earthquake resistance, suitable for harsh industrial environments.

6、 Certification and Standards

Safety certification: Complies with CE certification requirements to ensure product compliance.

Environmental standards: Compliant with RoHS directive, restricting the use of hazardous substances.

Explosion proof category: Gas explosion-proof category is ATEX gas explosion-proof category 3G (dust-free explosion-proof category).
