SIEMENS 6ES7350-2AH01-0AE0 New and Original High quality

6ES7350-2AH01-0AE0

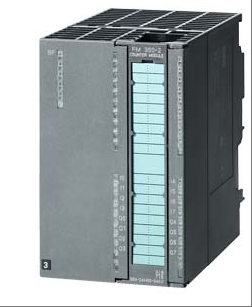

The 6ES7350-2AH01-0AE0 model product is the FM 350-2 counter module of Siemens SIMATIC S7-300 series PLC, designed specifically for high-precision counting, frequency/speed measurement, and cycle duration monitoring in the field of industrial automation. This module supports 8-channel 20kHz pulse signal input and is compatible with 24V DC incremental encoders, NAMUR sensors, and directional components. It can handle complex measurement tasks such as metering and batching, and can flexibly adapt to different application scenarios through 7 working modes (such as continuous/single counting, frequency control, periodic measurement, etc.). The module is equipped with a fault indicator light (SF LED) and a configuration software package, integrating four standard functional blocks (such as CNT2-CTR, CNT2-CWR, etc.) to achieve counter value reading, writing, and diagnostic functions. Combined with PROFINET IO or PROFIBUS DP distributed configuration capabilities, it can be efficiently integrated into automation control systems in manufacturing industries such as automotive manufacturing and packaging machinery, ensuring high reliability and real-time performance.

Technical specifcations for 6ES7350-2AH01-0AE0

Model: 6ES7350-2AH01-0AE0

Product positioning: As an extended counter module for S7-300 series PLC, it is used for high-precision counting, frequency/speed measurement, and cycle duration monitoring in the field of industrial automation.

2、 Functional parameters

Counting function:

Input channel: Supports 8-channel pulse signal input, compatible with 24V DC incremental encoders, NAMUR sensors, and directional components.

Maximum input frequency: Some materials mention that a single channel can support up to 20kHz, while others show that the maximum input frequency can reach 100kHz. Please refer to the actual configuration for details.

Working mode: Provides 7 working modes, including continuous/single counting, frequency control, cycle measurement, etc., which can quickly adapt to different application scenarios.

Output function:

Digital output: With digital output function, it can be directly allocated to each counter channel to achieve fast response.

Response method: Support sending process interrupts to the CPU through the integrated backplane bus, or provide alternative solutions such as canceling operations and continuing counting in case of CPU failure.

Integrated functions:

Configuration software package: The module comes with a configuration software package that includes brief debugging instructions, parameter allocation dialog boxes, and four standard functional blocks (such as CNT2-CTR, CNT2-CWR, etc.) for exchanging target data with the CPU.

Fault diagnosis: Provide DIAG_RD function block, which can provide diagnostic information of the module when the diagnosis is interrupted.

3、 Electrical parameters

Power supply voltage: 24V DC, allowable range is 20.4V to 28.8V.

Current consumption: Maximum consumption from load voltage L+(no-load) is 150mA, maximum consumption from backplane bus 5V DC is 100mA, and typical power consumption is 10W.

4、 Environmental parameters

Working temperature: Supports a temperature range of -25 ° C to+60 ° C, suitable for harsh industrial environments.

Protection level: The specific protection level is not explicitly mentioned, but as an industrial grade module, it usually has high environmental adaptability.

5、 Mechanical parameters

Dimensions: Width of 80mm, specific dimensions may vary slightly due to configuration.

Installation method: Modular design, supporting installation in the control system.

Indicator light: Equipped with one red LED fault indicator light (SF) to indicate the status of the module.

6、 Certification and Standards

Compliant with standards: Compliant with industrial standards such as DIN 19234 to ensure the reliability and safety of the product.
