SIEMENS 6ES7350-1AH03-0AE0 New and Original High quality

6ES7350-1AH03-0AE0

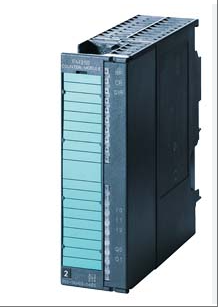

The 6ES7350-1AH03-0AE0 model product is an FM 350-1 single channel counter module dedicated to Siemens SIMATIC S7-300 series PLC. It adopts a compact modular design, with a built-in 5V/24V encoder power interface, and supports high-speed acquisition and processing of incremental encoder signals (up to 500kHz) through a front connector. This module has gate control signal control function, which can accurately estimate the pulse direction and perform dual reference value comparison. It integrates fault indicator lights (SF) and module coding components to ensure stable communication with the S7-300 backplane bus, and ensures wiring reusability through plug-in coding plugs. Its standard functional blocks CNT_CTRL (FC 0) and DIAG_INF (FC 1) can optimize counter logic programming, suitable for industrial scenarios such as assembly equipment and packaging machinery that require high-precision position detection. It can still achieve reliable operation through Siemens industrial certification standards in complex electromagnetic environments.

Technical specifcations for 6ES7350-1AH03-0AE0

Basic functional parameters

Counting capability: Supports up to 500kHz counting frequency, capable of processing high-speed pulse signals, suitable for high-precision motion control scenarios.

Channel configuration: single channel design, compatible with 5V and 24V incremental encoder input, to meet different sensor voltage requirements.

Working mode: Supports three modes: continuous counting, single counting, and cycle counting, suitable for diverse application scenarios such as pulse monitoring and periodic task statistics.

2、 Electrical parameters

Power supply specifications:

Auxiliary voltage: 24V DC, rated range 18.5V-30.2V (dynamic), 20.4V-28.8V (static)

Encoder power supply: Provides 5V (± 2%)/300mA and 24V encoder power outputs

Power consumption control: Typical power consumption of 4.5W, current consumption ≤ 40mA (when the load voltage is unloaded), backplane bus consumption ≤ 160mA

Anti interference design: supports non periodic voltage jump (35V/500ms recovery), enhances industrial site adaptability

3、 Interface and signal characteristics

Connection method: Using a 20 pin front connector, supporting plug and play design, simplifying on-site wiring.

Digital input:

Points: 3 channels (door start, door stop, counter setting)

Voltage range: "0" signal -28.8V to 5V, "1" signal+11V to+28.8V

Input current: "1" signal typical value 9mA

Digital output:

Points: 2 channels, with electronic short-circuit protection

Output characteristics: "0" signal ≤ 3V, "1" signal ≥ 2L+-1.5V, rated current 0.5A (resistive load)

Response time: ≤ 300 μ s (0 → 1 signal switching)

4、 Functional characteristics

Dual comparison value control: integrates two programmable comparison values, responds through digital output when triggered, supports alarm or control logic linkage.

Gate control function: Control the start and stop of the counter through the gate signal to achieve timing control of pulse acquisition.

Standard Function Block: Provides CNT_CTRL (FC0) and DIAG_INF (FC1) function blocks to simplify STEP 7 programming.

Interrupt handling: Supports sending interrupt requests to the CPU through the backplane bus to achieve real-time response.

5、 Mechanical and installation parameters

Protection design: IP20 protection level, suitable for installation inside control cabinets.

Installation method: Supports DIN rail installation, compact module size, saves cabinet space.

Environmental adaptability: Operating temperature range of -25 ℃ to+60 ℃, supporting harsh environments such as high humidity and condensation.

6、 Certification and Compliance

Safety certification: Complies with CE certification standards and meets EU industrial equipment safety requirements.

Electromagnetic compatibility: Through industrial grade EMC testing, suitable for strong electromagnetic interference environments.
