SIEMENS 6ES7341-1BH01-0AE0 New and Original High quality

6ES7341-1BH01-0AE0

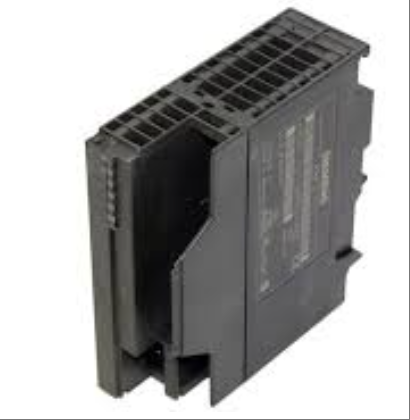

The 6ES7341-1BH01-0AE0 model product is the CP341 communication control processor for Siemens S7-300 series PLC, designed specifically for high-speed and reliable communication requirements in the field of industrial automation. It integrates high-performance communication interfaces and powerful data processing capabilities, supports multiple communication protocols (such as TCP/IP, UDP/IP, ICMP, ARP, etc.) and topology structures, and can achieve high-speed data exchange and remote monitoring between PLC and other devices (such as HMI, frequency converter, sensors, etc.); It adopts advanced Ethernet technology, with a transmission rate of up to 100Mbps (depending on the network environment), and has multi protocol support characteristics. It is compatible with mainstream industrial protocols such as PROFIBUS-DP and industrial Ethernet, and can be seamlessly integrated into Siemens S7-300 systems, simplifying engineering design and debugging processes; The module has a protection level of IP20 and a working temperature range of -25 ℃ to+70 ℃ (depending on the installation environment). It is suitable for harsh industrial environments and supports remote configuration and diagnostic functions, making it convenient for users to grasp the equipment status in real time. It helps to achieve efficient automation control and intelligent upgrading in manufacturing, energy, transportation, water treatment and other fields.

Technical specifcations for 6ES7341-1BH01-0AE0

Interface and communication type

Interface type: Equipped with a 20mA (TTY) interface, supporting point-to-point communication, compatible with RS-232C (V.24) and RS-422/485 (X.27) protocols, suitable for various industrial communication scenarios.

Communication Protocol: Supports protocols such as 3964 (R) half duplex, ASCII driver, RK512 computer connection, etc., compatible with PROFIBUS-DP and industrial Ethernet, and can achieve networking between PLC and HMI, frequency converter, sensor and other devices.

2、 Communication speed and distance

Transmission rate: Supports a rate range of 0.3~76.8 kbit/s, with a maximum of 76.8 kbit/s in full duplex mode and 38.4 kbit/s in half duplex mode, meeting different data transmission requirements.

Communication distance: up to 1200 meters (at a rate of 19.2 kbit/s), supporting various cable length specifications such as 5 meters, 10 meters, and 50 meters, suitable for different industrial site layouts.

3、 Function and application features

Scalability: As an S7-300 series CPU expansion module, it supports centralized and distributed configuration, and can expand up to 32 modules to achieve flexible system configuration.

Functional module integration: integrates counting, positioning, industrial identification system and other functions, supports fast counting, PID regulation and MICROMASTER frequency converter control, and meets the requirements of complex automation tasks.

Environmental adaptability: With a protection level of IP20 and a working temperature range of -25 ℃ to 70 ℃, it is suitable for harsh industrial environments such as automobile manufacturing, food processing, and environmental technology.

4、 Programming and Configuration

Programming support: Compatible with STEP 7 programming environment, supports graphical programming and debugging, simplifies engineering design and maintenance processes.

Configuration tool: Use the "hwconfig" tool to configure and set parameters, support symbol address and actual parameter assignment, and achieve universal calling of functional blocks.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
