SIEMENS 6ES7340-1AH01-0AE0 New and Original High quality

6ES7340-1AH01-0AE0

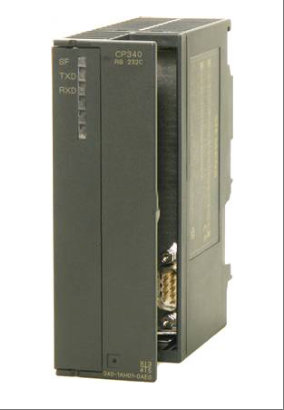

The 6ES7340-1AH01-0AE0 model product is a communication processor module (CP 340) for Siemens S7-300 series PLCs, designed specifically for point-to-point low-speed communication. It supports three physical interfaces: RS-232C (V.28), 20mA current loop (TTY), and RS-422/RS-485 (X.27), and can adapt to communication protocols such as ASCII and 3964 (R) to achieve serial data exchange with S5/S7 series PLCs, industrial robot controllers, barcode readers, and other devices. The module adopts a compact structure design and supports cable configurations with different communication distances from 15 meters to 1200 meters. It is widely used in distributed control system integration and device networking scenarios in industrial sites. Its hardware parameters and protocol compatibility can meet the requirements of small and medium-sized automation. The project requires reliability and flexibility in data transmission.

Technical specifcations for 6ES7340-1AH01-0AE0

Interface type and communication protocol

Interface type: This module is equipped with RS-232C (V.28) physical interface and supports point-to-point low-speed communication.

Communication Protocol: Compatible with ASCII, 3964 (R) and other protocols, capable of connecting S5/S7 series PLCs, industrial robot controllers, barcode readers and other devices.

2、 Communication speed and distance

Transmission rate: Supports a baud rate range of 2.4kbps to 19.2kbps to meet the communication needs of different devices.

Communication distance: The maximum transmission distance under standard configuration is 15 meters, suitable for short distance device interconnection.

3、 Electrical parameters

Power supply method: 5V power supply is provided through the backplane bus, with current consumption ≤ 165mA and power consumption ≤ 0.85W.

Isolation feature: The interface part adopts electrical isolation design to enhance the system's anti-interference ability.

4、 Physical characteristics

Module size: Compliant with S7-300 series standards, suitable for 35mm DIN rail installation.

Environmental adaptability: Operating temperature range of 0 ° C to 55 ° C, storage temperature of -25 ° C to 70 ° C, suitable for industrial site environment.

5、 Functional characteristics

Protocol support: Built in ASCII driver and 3964 (R) protocol stack, supporting half duplex/full duplex modes.

Configuration tool: Integrated STEP 7 parameterization tool, supports module configuration through CPU, and data blocks are stored in CPU.

Status indication: Equipped with LED indicator lights, it displays real-time "send", "receive" or "fault" status.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
