SIEMENS 6ES7334-0KE80-0AB0 New and Original High quality

6ES7334-0KE80-0AB0

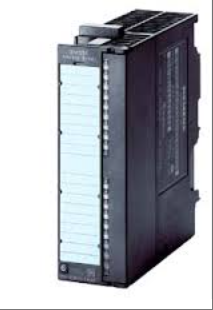

The 6ES7334-0KE80-0AB0 model product is an analog input/output module for Siemens S7-300 series PLC, suitable for industrial automation control scenarios. It has the core function of converting on-site analog signals (such as voltage and current) into digital signals for PLC processing, supporting multi-channel signal acquisition and transmission. The modular design facilitates integration with Siemens S7-300 series CPU and ET200 distributed I/O system, and is widely used in industrial scenarios such as manufacturing production line monitoring and energy equipment data acquisition. Its compact structure and standardized interface can adapt to complex industrial environments. Through cooperation with engineering software such as TIA Portal, efficient automation solution configuration and maintenance can be achieved.

Technical specifcations for 6ES7334-0KE80-0AB0

input parameter

Input points: 4 analog input channels.

Input range and impedance: Supports 0V~10V (input impedance 100k Ω) or 0mA~20mA (input impedance 500 Ω) signals, compatible with various industrial sensor output standards.

Resolution: Provides 12 bit resolution to meet the precision requirements of conventional industrial scenarios.

Conversion time: The maximum conversion time for a single channel is 85ms, suitable for automation control tasks with moderate real-time requirements.

Output parameters

Output points: 2 analog output channels.

Output range: Supports 0V~10V voltage output, suitable for driving voltage type actuators.

Load impedance: The minimum load impedance for voltage output is 5k Ω, and it is necessary to ensure impedance matching of the actuator.

Resolution: Also using 12 bit resolution, consistent with input accuracy.

Conversion time: The maximum conversion time for a single channel is 0.8ms, which can achieve fast signal updates.

accuracy and error

Basic error limit: The error range for voltage output is ± 0.8%, and the error range for current output is ± 1.0%, which meets the conventional accuracy standards of industrial automation modules.

Operating limit error: The error range extends to ± 0.9% for voltage output and ± 0.8% for current output, making it suitable for industrial sites with large environmental fluctuations.

Environmental adaptability

Working temperature range: 0 ℃ to 55 ℃, suitable for most industrial environments.

Storage temperature range: -25 ℃ to 70 ℃, suitable for logistics and warehousing environments.

Relative humidity range: 5%~95% (no condensation), suitable for humid or dusty environments.

Electrical characteristics

Protection level: IP20 protection standard, suitable for installation scenarios inside control cabinets.

Installation method: Supports DIN rail installation for quick deployment and maintenance.

Interface type: Adopting RJ45 Ethernet interface, compatible with industrial communication protocols such as PROFINET.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
