SIEMENS 6ES7332-7ND01-0AB0 New and Original High quality

6ES7332-7ND01-0AB0

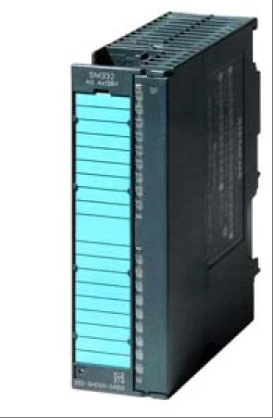

The 6ES7332-7ND01-0AB0 model product is an analog output module of Siemens SIMATIC S7-300 series PLC, designed specifically for continuous signal control in industrial automation scenarios. This module has the ability to output 4-channel analog signals, supporting 0/4 to 20mA current signals or 0 to 10V voltage signals. It uses a 12 bit resolution to achieve high-precision signal conversion, meeting the strict requirements for continuous variable adjustment in process control. The module is equipped with PTB testing, certification, and diagnostic functions, which can monitor channel status in real time and trigger fault interrupts to ensure reliable operation in complex industrial environments. Its 20 pole front connector design supports fast wiring and hot plugging, compatible with the distributed I/O architecture of S7-300 series PLC, suitable for temperature/pressure/flow control in industries such as chemical, energy, and mechanical manufacturing. Through seamless integration with TIA Portal engineering software, it can quickly build automation systems with process monitoring and safety interlock functions, significantly improving production efficiency and process stability.

Technical specifcations for 6ES7332-7ND01-0AB0

Parameter Category

Technical parameter details

Output points

4 analog output channels

Output signal type

Supports 0/4 to 20mA current signal or 0 to 10V voltage signal output

resolution

12 bits (at 0 to 10V, 0 to 20mA output)

conversion time

Maximum 0.8ms per channel

Load impedance

The minimum voltage output is 1k Ω, and the maximum current output is 500 Ω

Short circuit protection

Equipped with short-circuit protection function, with a maximum short-circuit current of 25mA

open circuit voltage

Maximum 18V

isolation method

There is an optical isolation circuit inside the module to provide electrical isolation

diagnostic function

Equipped with diagnostic interrupt function, it can indicate group faults with red LED and read diagnostic information

Supply Voltage

The rated load voltage is DC24V, and 240mA is consumed (unloaded) from the load power supply L+

Working temperature range

0 to 60 ℃ (within the range of relative humidity)

Basic error

At 25 ℃, the basic error of voltage output relative to the output range is ± 0.4%, and the basic error of current output is ± 0.5%

Connection

Supports 4-wire connection, analog signals should be transmitted using shielded cables or twisted pair cables, with a maximum distance of 200m when using shielded cables

protection grade

IP20 (suitable for installation inside cabinets)
