SIEMENS 6ES7331-7TF01-0AB0 New and Original High quality

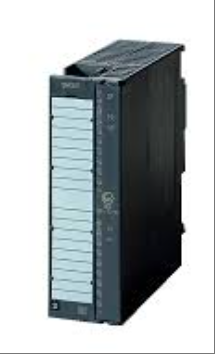

6ES7331-7TF01-0AB0

The 6ES7331-7TF01-0AB0 model product is a high-performance analog input module of Siemens SIMATIC S7-300 series, designed specifically for industrial automation scenarios. It has 8-channel analog input function, supports 0/4-20mA HART protocol signal access, and can accurately collect process parameters such as temperature, pressure, and flow rate on site. It is suitable for applications in process industries such as chemical, power, and metallurgical industries that have strict requirements for high-precision signal processing; This module is used in conjunction with the IM153-2 interface module through the ET200M distributed I/O system, and uses a 20 pin front connector to achieve fast signal access. Its hardware design supports FW upgrade function and integrates HART auxiliary variable reading, redundant configuration, and local diagnostic cache with timestamp function, which can significantly improve the system's fault diagnosis ability and data traceability. It is an important component for building a highly reliable distributed control system.

Technical specifcations for 6ES7331-7TF01-0AB0

Module type and number of channels:

Belonging to the SM331 analog input module, it has 8-channel analog input function.

Signal type and range:

Supports 0/4-20mA HART protocol signal access, which can accurately collect process parameters such as temperature, pressure, and flow rate on site.

System compatibility:

Used for ET200M distributed I/O system, it needs to be paired with IM153-2 interface module to achieve fast signal access through a 20 pin front connector.

Functional features:

Support HART auxiliary variable reading, which can obtain diagnostic information beyond device process variables.

Capable of redundant configuration and improving system reliability through dual module hot backup.

Built in local diagnostic cache function, capable of recording fault events with timestamps and supporting historical data tracing.

Support firmware (FW) upgrade function, which can remotely update module programs through STEP 7 engineering software.

Environmental adaptability:

The working temperature range is -50 ° C to 80 ° C, meeting the requirements of extreme industrial environments.

Compliant with RoHS environmental standards, suitable for scenarios with requirements for hazardous substance restrictions.

Application areas:

Widely used in process industries such as chemical, power, metallurgy, etc., especially suitable for automation scenarios that require strict signal accuracy, system reliability, and diagnostic capabilities.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
