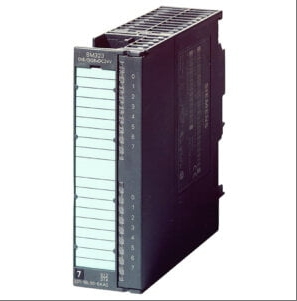

SIEMENS 6ES7322-1BH00-0AA0 New and Original High quality

6ES7322-1BH00-0AA0

Basic specifications

Channel Configuration

Number of output channels: 16

Output type: transistor output (24V DC), supports 0.5A/channel rated current

Voltage range: compatible with 24V DC load, signal "1" output voltage range is L+(-0.8V to -1.6V), signal "0" residual current ≤ 0.5mA

Electrical parameters

Power consumption: Typical value of 4.9W, input current from load voltage L+(no-load) up to 80mA, maximum 80mA from backplane bus 5V DC

Load limit: The total output current of each group is ≤ 4A (when installed horizontally, up to 40 ° C), and the total module current is ≤ 8A

Switching frequency: maximum 100Hz under resistive load, maximum 0.5Hz under inductive load, maximum 10Hz under lamp load

mechanical structure

Interface form: 1 × 20 pin front connector, supports hot plugging (ET 200M system)

Installation method: DIN rail installation, protection level IP20 (for use inside the cabinet)

Size and weight: Standard S7-300 module size, please refer to the product manual for details

2、 Performance characteristics

Signal conversion capability

Logic level adaptation: Convert PLC internal signals (logic 0/1) to external 24V DC levels, supporting direct drive of process equipment

Isolation characteristics: Adopting optical coupling isolation technology, isolation voltage ≥ 500V (in accordance with IEC 61131-2 standard)

Load adaptability

Resistive load: Supports a resistance range of 48 Ω to 4k Ω, with a maximum lamp load of 5W

Inductive load: Built in RC filter (300 Ω/0.1 μ F), used to suppress the reverse electromotive force when the inductive element is turned off

Minimum load current: Signal "1" needs to be ≥ 5mA (0-60 ° C ambient temperature)

Environmental adaptability

Working temperature: -25 ° C to+60 ° C (storage temperature -40 ° C to+85 ° C)

Relative humidity: 5% to 95% (no condensation)

Anti interference capability: compliant with EN 61000-6-2 electromagnetic compatibility standard

3、 Extended functionality

Configuration flexibility

Address allocation: The output address is determined by the slot position and supports STEP 7 or TIA Portal programming software configuration

Diagnostic function: The module provides status indicator lights in the front door label area, supporting quick fault location

system compatibility

Protocol support: Seamless integration with PROFIBUS/PROFINET fieldbus, suitable for distributed I/O architecture

Scalability: Can be combined with ET 200M active bus module to achieve hot swappable maintenance

4、 Typical application scenarios

Industrial Automation

Drive actuators such as 24V DC solenoid valves, relays, indicator lights, etc

Connect the digital input interface of a small motor controller or frequency converter

process control

Remote control of valves in the fields of chemical engineering and water treatment

Sensor signal triggering of food packaging machinery

Technical specifcations for 6ES7322-1BH00-0AA0

Basic specifications

Channel Configuration

Number of output channels: 16

Output type: transistor output (24V DC), supports 0.5A/channel rated current

Voltage range: compatible with 24V DC load, signal "1" output voltage range is L+(-0.8V to -1.6V), signal "0" residual current ≤ 0.5mA

Electrical parameters

Power consumption: Typical value of 4.9W, input current from load voltage L+(no-load) up to 80mA, maximum 80mA from backplane bus 5V DC

Load limit: The total output current of each group is ≤ 4A (when installed horizontally, up to 40 ° C), and the total module current is ≤ 8A

Switching frequency: maximum 100Hz under resistive load, maximum 0.5Hz under inductive load, maximum 10Hz under lamp load

mechanical structure

Interface form: 1 × 20 pin front connector, supports hot plugging (ET 200M system)

Installation method: DIN rail installation, protection level IP20 (for use inside the cabinet)

Size and weight: Standard S7-300 module size, please refer to the product manual for details

2、 Performance characteristics

Signal conversion capability

Logic level adaptation: Convert PLC internal signals (logic 0/1) to external 24V DC levels, supporting direct drive of process equipment

Isolation characteristics: Adopting optical coupling isolation technology, isolation voltage ≥ 500V (in accordance with IEC 61131-2 standard)

Load adaptability

Resistive load: Supports a resistance range of 48 Ω to 4k Ω, with a maximum lamp load of 5W

Inductive load: Built in RC filter (300 Ω/0.1 μ F), used to suppress the reverse electromotive force when the inductive element is turned off

Minimum load current: Signal "1" needs to be ≥ 5mA (0-60 ° C ambient temperature)

Environmental adaptability

Working temperature: -25 ° C to+60 ° C (storage temperature -40 ° C to+85 ° C)

Relative humidity: 5% to 95% (no condensation)

Anti interference capability: compliant with EN 61000-6-2 electromagnetic compatibility standard

3、 Extended functionality

Configuration flexibility

Address allocation: The output address is determined by the slot position and supports STEP 7 or TIA Portal programming software configuration

Diagnostic function: The module provides status indicator lights in the front door label area, supporting quick fault location

system compatibility

Protocol support: Seamless integration with PROFIBUS/PROFINET fieldbus, suitable for distributed I/O architecture

Scalability: Can be combined with ET 200M active bus module to achieve hot swappable maintenance

4、 Typical application scenarios

Industrial Automation

Drive actuators such as 24V DC solenoid valves, relays, indicator lights, etc

Connect the digital input interface of a small motor controller or frequency converter

process control

Remote control of valves in the fields of chemical engineering and water treatment

Sensor signal triggering of food packaging machinery
