SIEMENS 6ES7317-2AK14-0AB0 New and Original High quality

6ES7317-2AK14-0AB0

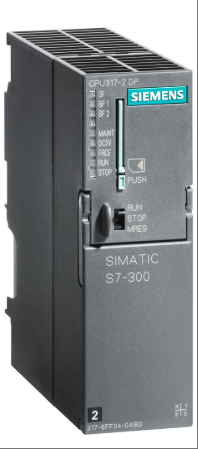

The 6ES7317-2AK14-0AB0 model product is a SIMATIC S7-300 series CPU 317-2 DP central processing unit, which integrates 1MB main memory, is equipped with 1 MPI/DP 12MBit/s interface and 2 DP Master/Slave interfaces, and needs to be used in conjunction with a miniature memory card. This module supports distributed automation architecture and can be used as a central controller for production lines or as a machine tool controller for centralized I/O control. Through the MPI/DP combination interface, 32 connections can be established with S7-300/400 or programming devices, and global data communication networking is supported. Its built-in PROFIBUS DP interface supports operation in master or slave mode, fully compatible with the PROFIBUS DP V1 standard, and has expandable diagnostic and parameter assignment functions. This product adopts a modular design, supports SCL programming and S7-GRAPH sequential control programming through STEP 7 engineering tools, and has the ability to expand process diagnosis. The processor can execute binary instructions at a speed of 25ns per instruction and floating-point instructions at a speed of 160ns per instruction. The working memory capacity can meet the requirements of complex programs.

Technical specifcations for 6ES7317-2AK14-0AB0

Memory:

Working memory: 1MB (1024 KB)

Loading memory: insertable micro memory card (MMC), supporting up to 8MB

Non volatile memory size for non-volatile data blocks: 256 KB

Interface:

1 MPI/DP 12MBit/s interface

2 DP Master/Slave interfaces (PROFIBUS DP interface, can be used as a DP master or DP slave for operation)

Power supply and power consumption:

Power supply voltage: DC 24V, allowable range 19.2V to 28.8V

Power consumption: typical value of 4.5W

Processing time:

Bit operation: Typical value 0.025 µ s

Word operation: typical value 0.03 µ s

Fixed point number operation: typical value 0.04 µ s

Floating point operation: typical value 0.16 µ s

Program blocks and data areas:

Maximum number of data blocks (DB), functions (FC), and function blocks (FB): 2048

Number and types of Organizational Blocks (OB): including Empty Loop OB, Time Alarm OB, Delay Alarm OB, Time Interrupt OB, Process Alarm OB, DPV1 Alarm OB, etc

Maintain data area: a maximum of 256 KB in total

Counter and Timer:

S7 counter: quantity 512, adjustable retention

S7 timer: quantity 512, adjustable retention, time range 10ms to 9990s

Scalability:

Support increasing the number of modules through rack expansion, up to 3 expansion devices (EU) can be connected, and each expansion device can connect 8 modules

Other features:

Support STEP 7 engineering tools for programming and debugging

Support SCL programming and S7-GRAPH sequential control programming

Capable of expanding process diagnostics

Integrated real-time clock, battery powered, synchronous

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

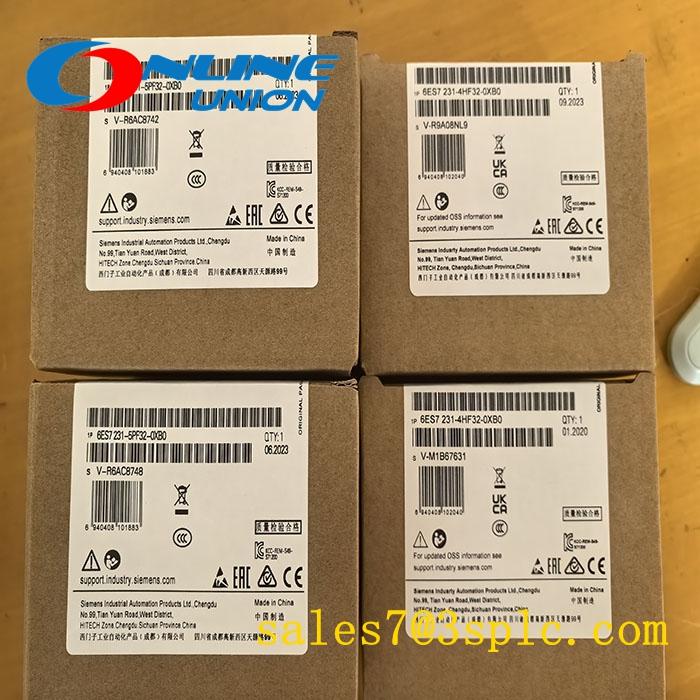

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
