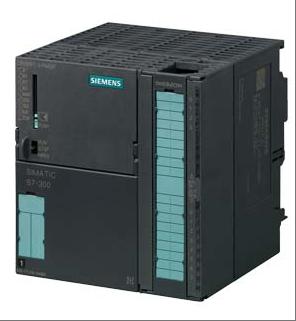

6ES7315-7TJ10-0AB0

SIEMENS 6ES7315-7TJ10-0AB0 New and Original High quality

SIEMENS 6ES7315-7TJ10-0AB0 module

  • Item no.:

    6ES7315-7TJ10-0AB0
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    GER
  • Color:

    New sealed
  • Lead Time:

    In stock/1-3days

6ES7315-7TJ10-0AB0

The 6ES7315-7TJ10-0AB0 model product is a process CPU (CPU 315T-3 PN/DP) in the Siemens S7-300 series PLC, designed specifically for industrial automation control and suitable for scenarios that require integrated process input/output and motion control functions. This module is equipped with 384KB working memory and supports distributed configuration through PROFIBUS DP and PROFINET interfaces. It has a high-speed clock synchronization mode and can handle medium to high altitude sequencing and control motion tasks of 8 axes simultaneously. Its hardware design complies with industry standards, with a rated operating voltage of 24V DC and an allowable voltage range of 19.2V to 28.8V. It is equipped with reverse polarity protection function to ensure stable operation in complex electromagnetic environments. The module supports programming with STEP 7 V5.5 SP2 and above versions, is compatible with the S7 Technology package, and can expand data storage space through MMC memory cards. It is suitable for automation control systems in industries such as chemical, electronic/battery, and electrical.





Technical specifcations for 6ES7315-7TJ10-0AB0

Memory:

Working memory: integrated with 384 kilobytes, providing ample space for user programs.

Non volatile memory: The memory size used for non-volatile data blocks is 128 kilobytes.

Load Storage: Supports plug-in MMC (Micro Memory Card) with a maximum capacity of 8 Mbyte, used to store project data (including symbols and annotations), and supports data archiving and recipe functions.

Processing performance:

Processing time: The typical value for bit operations is 0.05 µ s, for word operations it is 0.09 µ s, for fixed-point operations it is 0.12 µ s, and for floating-point operations it is 0.45 µ s.

Interface and Communication:

Interface type: Includes 1 MPI/DP interface, 2 DP interfaces (1 for drivers), and 1 PROFINET interface with dual port switch.

Communication capability: Supports PROFIBUS DP and PROFINET protocols, enabling distributed I/O and motion control functions.

Power supply and power consumption:

Power supply voltage: The rated value is 24V DC, and the allowable range is 19.2V DC to 28.8V DC.

Power consumption: The typical value is 7.5W.

Input/Output and Counter/Timer:

Digital input: Provides 4-point digital input, which can be used for process functions such as origin acquisition or fast cam switch.

Counter: The number of S7 counters is 256, with adjustable retention and adjustable counting range.

Timer: There are 256 S7 timers with adjustable retention and a time range of 10ms to 9990s.

Data area and address area:

Maintain data area: up to 128KB, supports flag retention settings.

I/O address area: The input and output address areas are each 2048 bytes, supporting distributed I/O configuration.

Hardware configuration and scalability:

Rack configuration: Supports a maximum of 1 rack, with each rack capable of installing up to 8 modules.

Scalability: Supports single-layer configuration of up to 8 modules, and can establish 32 connections through MPI/DP combined interfaces.

Clock and synchronization:

Hardware clock: Supports battery powered real-time clock with a maximum error of 10 seconds per day, a typical value of 2 seconds, and a backup time of 6 weeks (at an ambient temperature of 40 ° C).

Clock synchronization: Supports isochronous synchronization mode through PROFIBUS DP or PROFINET interfaces.

Operating environment and installation:

Working temperature range: -20 ° C to+60 ° C, suitable for industrial environments.

Installation method: Supports rail installation for easy integration into the control cabinet.













Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.





Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
