6ES7315-2EH14-0AB0

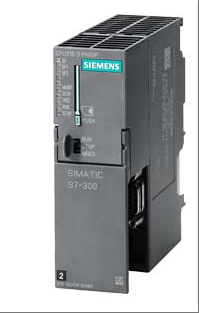

The 6ES7315-2EH14-0AB0 model product is a SIMATIC S7-300 series CPU 315-2 PN/DP central processing unit with built-in 384KB working memory, equipped with 1 MPI/DP 12MBit/s interface and 2 Ethernet PROFINET interfaces (with dual port switches), and needs to be used in conjunction with a miniature storage card. This module supports clock synchronization through PROFIBUS DP or PROFINET interfaces and has real-time clock synchronization capabilities. It is suitable for scenarios in the industrial automation field that require high-precision data processing and communication, and can meet the computational requirements of complex control systems.
Technical specifcations for 6ES7315-2EH14-0AB0
Processor and Memory:
Integrated high-performance processor with fast instruction execution speed.
Work memory: Integrated 384KB RAM for storing programs and running data.
Loading memory: Supports up to 2MB memory card (optional) for storing user programs, data blocks, and system data.
Interface and Communication:
Equipped with one MPI/DP 12MBit/s interface, supporting multipoint interface (MPI) and PROFIBUS-DP communication protocol.
Equipped with 2 Ethernet PROFINET interfaces, with dual port switches, supporting TCP/IP, ISO on TCP, and PROFINET IO communication protocols, with a communication speed of up to 10/100Mbps.
Input/output expansion capability:
Digital input/output: Up to 1024 digital input points and 1024 digital output points can be expanded.
Analog input/output: Up to 128 analog input channels and 128 analog output channels can be expanded.
Power supply and power consumption:
Working voltage: 24V DC, allowable range 20.4V to 28.8V.
Power consumption: The typical value is 12W, which helps to reduce energy consumption and heat dissipation requirements.
Environmental adaptability:
Operating temperature range: 0 ° C to 60 ° C.
Storage temperature range: -25 ° C to 85 ° C.
Relative humidity: 5% to 95% (without condensation).
Protection level: Suitable for indoor dry environments.
Programming and software support:
Supports Siemens STEP7 programming software and multiple programming languages such as Ladder Diagram and Structured Text.
Other features:
Fast instruction execution: The typical value of bit operation execution time is 0.08 μ s/instruction, and the typical value of floating-point operation execution time is 0.3 μ s/instruction. It can process large amounts of data and complex control algorithms in real time.
Modular design: Supports increasing the number of input and output points through expansion modules, making it easy to install and maintain, while also having good scalability.
Comprehensive diagnostic functions and self-protection mechanisms: capable of real-time monitoring of system operation status, timely detection and handling of faults, ensuring system reliability and stability.
