6ES7314-6BH04-0AB0

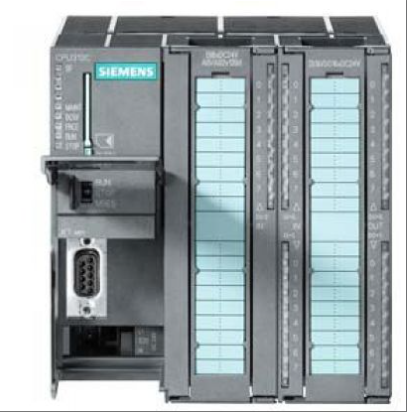

The 6ES7314-6BH04-0AB0 model product is a compact CPU module (CPU 314C-2 PTP) in the Siemens SIMATIC S7-300 series, with high-performance processing capabilities and rich communication interfaces. It integrates 24 point digital input, 16 point digital output, 4 analog input, and 2 analog output, supports 4 high-speed counters (60 kHz) and 1 Pt100 temperature measurement channel, and has built-in MPI interface and PROFIBUS-DP communication function. It is equipped with 192KB working memory and can be expanded to 8MB through a micro storage card, suitable for medium complexity automation task control. Its compact design, high anti-interference ability, and modular expansion characteristics can meet the needs of manufacturing assembly lines, material conveying, and machinery. The strict requirements for real-time control and data collection in industrial scenarios such as equipment monitoring.
Technical specifcations for 6ES7314-6BH04-0AB0
Series: SIMATIC S7-300
Type: Compact CPU Module (CPU 314C-2 PTP)
2、 Electrical parameters
Working voltage: 24V DC, allowable range 19.2V to 28.8V DC
Input current: rated value 660mA, typical value at no load 150mA, typical value at turn-on 5A
Power loss: typical value of 13W
3、 Memory storage
Work memory: Integrated 192KB, non expandable
Loading storage: Requires expansion through MMC card, supports up to 8MB
Retention memory: used for remaining data modules, with a size of 64KB
4、 I/O points and types
Digital input: 24 points
Digital output: 16 points
Analog input: 4 channels
Analog output: 2 channels
Temperature measurement: 1-channel Pt100
5、 Counting and timing function
High speed counters: 4, maximum frequency 60kHz
Counter type: S7 counter and IEC counter, unlimited quantity (limited only by RAM)
Timer types: S7 timer and IEC timer, quantity 256, time range 10ms to 9990s
6、 Communication interface
Integrated interface: RS485
MPI interface: supports up to 12 connections and can be used to interface with S7-300/400 or programmers PC、 Communication between operator panel and other equipment
Communication protocol: Supports programmer/OP communication, global data communication, S7 basic communication, etc
7、 Processing performance
CPU processing time:
Bit operation: Typical value 0.06 µ s
Word operation: typical value of 0.12 µ s
Fixed point operation: typical value of 0.16 µ s
Floating point operation: typical value 0.59 µ s
8、 Other characteristics
Front connector: 2 x 40 pins
Protection level: The specific IP level is not explicitly mentioned, but the module design complies with industrial standards and is suitable for harsh environments
Programming software support: STEP 7 V5.5 and above+SP1 or STEP 7 V5.3 and above+SP2 (with HSP 204 included)
Hardware functional status: firmware version V3.3
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year
3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
