SIEMENS 6ES7314-1AG13-0AB0 New and Original High quality

6ES7314-1AG13-0AB0

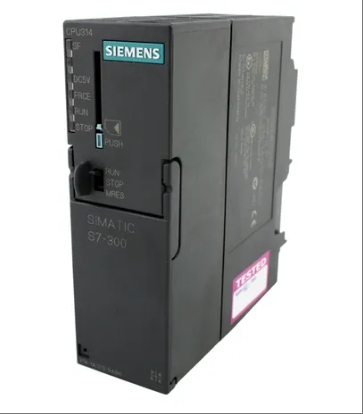

The 6ES7314-1AG13-0AB0 model product is the CPU 314 central processing unit module in the Siemens S7-300 series PLC, designed specifically for medium-sized automation control tasks, with modular structure and distributed configuration capabilities. This module integrates a 24V DC power supply and a 96KB working storage area, which needs to be used with a miniature memory card (MMC). It can efficiently process binary and floating-point operations, with instruction execution times of 60ns and 0.59 μ s, respectively, meeting the high requirements for program size and response speed in industrial scenarios. It supports establishing up to 12 parallel connections with S7-300/400, programming devices, PCs, and operator panels through MPI interface, and can build a network consisting of up to 16 CPUs through the "Global Data Communication" service to achieve cross device data exchange. The module is equipped with a diagnostic buffer that can store 500 error and interrupt events (including 100 long-term retention items). When the power is interrupted, critical data is automatically written to the MMC card to ensure data security. Users can parameterize configuration, properties, and CPU response through STEP 7 software, define station address, cycle time characteristics, retention range, and protection level, and support password protection to prevent unauthorized access. This product is widely used in industrial fields such as automotive manufacturing, packaging machinery, and energy management due to its high electromagnetic compatibility, earthquake resistance, and compact design. As the core component of automation control systems, it provides stable and reliable computing and communication support.

Technical specifcations for 6ES7314-1AG13-0AB0

Product positioning and compatibility:

Positioning: This product is a CPU 314 central processing unit module in the Siemens S7-300 series PLC, suitable for medium-sized automation control tasks.

Compatibility: Supports combination with other modules in the S7-300 series to achieve system function expansion and compatibility with various industrial equipment signal types.

Electrical and power characteristics:

Power supply: Integrated 24V DC power supply, no external power module required, simplifying system design.

Memory: Equipped with a 96KB working storage area to meet the needs of medium-sized programs, it needs to be used with a miniature memory card (MMC) and supports a maximum storage capacity of 8MB.

Computational and processing capabilities:

Calculation speed: Binary instruction execution time is 60ns, floating-point operation time is 0.59 μ s, supporting efficient data processing.

Extended storage: Provides 128KB of high-speed RAM (equivalent to approximately 42K instructions), providing ample space for complex programs.

Communication and connectivity capabilities:

Interface: Integrated MPI multi-point interface, supporting PROFIBUS or industrial Ethernet communication.

Connection count: Up to 12 connections can be established simultaneously, always reserved for the programmer and operator panel.

Network construction: Support the establishment of a network consisting of up to 16 CPUs through the "Global Data Communication" service.

Safety and diagnostic functions:

Password protection: The user program supports password protection to prevent unauthorized access.

Diagnostic buffer: can store the last 500 error and interrupt events, of which 100 events can be retained for a long time.

Data backup: In the event of a power outage, up to 64KB of data will be automatically written to the MMC card to ensure data security.

Parameterization and extension features:

Parameterized settings: Through STEP 7 software, configuration, properties, and CPU response parameters can be set, including station address, cycle time characteristics, retention range, protection level, etc.

Scalability: Supports up to 32 module extensions (4-row structure), with integrated backplane buses within the modules for flexible system configuration.

Environmental adaptability:

Electromagnetic compatibility: It has high electromagnetic compatibility and is suitable for complex industrial environments.

Anti vibration performance: Designed to withstand earthquakes and meet the stability requirements of industrial sites for equipment.

Physical characteristics and installation:

Size and weight: The net weight of the product is 0.325Kg, and the packaging size is 12.90 x 15.10 x 5.10cm.

Installation method: Modular structure, compact design, easy to install and maintain.
