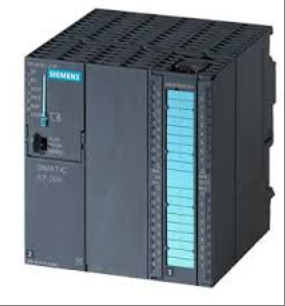

SIEMENS 6ES7313-6CE01-0AB0 New and Original High quality

6ES7313-6CE01-0AB0

The 6ES7313-6CE01-0AB0 model product is a CPU module in the Siemens S7-300 series PLC. The model name "6ES7" indicates that it belongs to the S7-300 series, and "313" reflects the functional characteristics of the CPU. This module has a compact design and integrates digital input and output interfaces, which can be directly connected to industrial field equipment and is suitable for distributed automation control system architecture; The PROFIBUS DP interface it is equipped with supports high-speed data communication, can connect remote I/O stations and drive devices, and build a master-slave station communication network; The module has a built-in 64KB working memory that supports user program and data storage, meeting the logical control, sequence control, and motion control requirements of small and medium-sized automation projects; Through STEP 7 programming software, flexible configuration can be achieved, compatible with MPI/PROFIBUS protocols, supporting multitasking and interrupt response. Typical application scenarios include mechanical manufacturing, assembly line control, and process monitoring. With high reliability and scalability, it has become the core control unit in the field of industrial automation.

Technical specifcations for 6ES7313-6CE01-0AB0

Model: 6ES7313-6CE01-0AB0

Series: S7-300

Purpose: Suitable for small and medium-sized automation projects, it can complete tasks such as logic control, sequence control, and motion control, and is widely used in fields such as mechanical manufacturing, assembly line control, and process monitoring.

2、 Functional characteristics

Integrated interface: It has integrated digital input/output interfaces and PROFIBUS DP master/slave interfaces, which can be directly connected to industrial field equipment to build a master-slave communication network.

Storage capacity: Built in 64KB working memory, supporting user program and data storage, meeting project storage requirements.

Programming support: Flexible configuration is achieved through STEP 7 programming software, compatible with MPI/PROFIBUS protocols, and supports multitasking and interrupt response.

Process function: With process related functions, it can complete tasks with special functions and connect separate I/O devices.

Running requirements: The CPU requires a Micro Memory Card (MMC) for operation.

3、 Electrical parameters

Power supply characteristics: The input power supply voltage is 24VDC, and the voltage fluctuation range is 20.4VDC~28.8VDC. In terms of current consumption, there are clear parameter ranges for high current and typical power consumption when powered by L+.

Input parameters: The number of digital input points, analog input points, voltage/current analog input points, thermal resistance/thermocouple and other input parameters are all specified in detail. For example, the typical value of the "1" signal input current in digital input is 8mA, and the input delay standard input can be set with parameters.

Output parameters: There are clear requirements for output parameters such as the number of digital output points, the number of analog output points, output short-circuit protection, and the voltage limit that causes circuit interruption. For example, the maximum length of shielded cable in digital output is 1000m, and the maximum length of unshielded cable is 600m.

4、 Mechanical characteristics

Weight: Approximately 409g~660g (data from different sources may vary slightly)

Dimensions: Width x Height x Depth ranging from 80mm x 125mm x 130mm~120mm x 125mm x 130mm (data from different sources may vary slightly)

5、 Environmental adaptability

Working temperature: It can adapt to a certain temperature range, but the specific values are not explicitly mentioned in common materials. Generally, it can meet the environmental requirements of industrial sites.

Protection level: It has a certain level of protection capability to ensure stable operation on industrial sites.

6、 Certification and Standards

Product certification: Through CCC certification, ensure product quality and safety.

Compliance: Complies with industrial standards and relevant regulatory requirements.
