SIEMENS 6ES7313-6BG04-0AB0 New and Original High quality

6ES7313-6BG04-0AB0

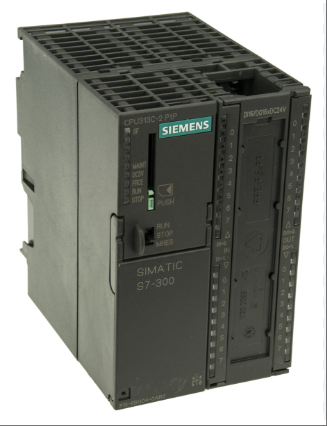

The 6ES7313-6BG04-0AB0 model product is a compact CPU module of Siemens S7-300 series PLC, designed specifically for small and medium-sized automation control systems. It integrates 16DI/16DO digital I/O channels and supports the integration of more signal types through expansion modules. It has strong analog signal processing capabilities and can accurately collect and convert process parameters such as temperature, pressure, and flow in industrial sites. With high-precision signal processing technology and fast response capabilities, it can significantly improve the real-time performance and stability of the control system; Its modular design supports flexible configuration, seamlessly integrating with extension components such as signal boards and communication modules through backplane buses, making it easy to adapt to the diverse needs of different industrial scenarios; Compatible with the STEP 7 programming environment and multiple communication protocols, it facilitates collaborative work with upper level systems such as HMI and SCADA. It is widely used in fields such as mechanical manufacturing, energy management, chemical production, and building automation, providing reliable hardware support for equipment monitoring, process optimization, and intelligent control. It is one of the core components driving the upgrade of industrial automation.

Technical specifcations for 6ES7313-6BG04-0AB0

Electrical parameters

Input voltage: Supports 24V DC power supply, rated value of 24V DC, allowable range of 19.2V DC to 28.8V DC, power wire needs to be equipped with external safety device, recommended to use LS switch (type C minimum 2A, type B minimum 4A).

Digital input/output: Integrated 16 point digital input (DI) and 16 point digital output (DO), supporting 24V DC signals, can meet the basic needs of small and medium-sized control systems.

Analog input/output: Built in 4-channel analog input (AI) and 2-channel analog output (AO), supporting multiple signal types (such as voltage and current), with a resolution of 12 bits, suitable for industrial scenarios that require high-precision signal processing.

High speed counter: Equipped with 3 high-speed counters, with a maximum counting frequency of 30kHz, it can accurately measure rapidly changing pulse signals and is suitable for applications such as motor speed detection.

Integrated interface: includes 1 MPI interface and 1 RS485 interface, supports multi-point communication protocol, and facilitates data exchange with other devices or upper computer systems.

2、 Performance parameters

Work memory: Built in 128KB work memory area, supporting the storage of user programs and data, while providing expandable loading memory (implemented through MMC cards), with a maximum capacity of up to 8MB, meeting the needs of complex control logic.

Processing speed: Bit operation processing time is only 0.07 μ s, word operation processing time is 0.15 μ s, fixed-point operation is 0.2 μ s, floating-point operation is 0.72 μ s, capable of quickly executing complex logic and mathematical operations.

Interruption capability: Supports event interrupt and timed interrupt functions, can respond in real-time to external signals or time triggered events, and improve the system's response speed and flexibility.

Block type support: Supports multiple program block types such as Organizational Block (OB), Function Block (FB), Function Block (FC), and System Function Block (SFB), with a maximum quantity of 1024, facilitating modular programming and code reuse.

3、 Environmental parameters

Working temperature: The allowable working temperature range is 0 ° C to 55 ° C (horizontal installation) or 0 ° C to 45 ° C (vertical installation), which can adapt to the environmental conditions of most industrial sites.

Relative humidity: At 55 ° C, the maximum relative humidity is 95%, without condensation, ensuring stable operation in humid environments.

Atmospheric pressure: The suitable atmospheric pressure range is 1080hPa to 795hPa (equivalent to an altitude of -1000m to 2000m), meeting the usage needs of different altitude areas.

Protection level: The module adopts a sealed design, with good dust and moisture resistance, and meets industrial grade protection standards.

4、 Scalability and Functionality

Expansion module support: Up to 32 modules can be expanded, including signal module (SM), functional module (FM), and communication processor (CP), which can flexibly adapt to control system requirements of different scales and complexities.

Signal board expansion: Supports adding additional I/O or communication interfaces through the signal board (SB) to further enhance the system's expansion capabilities.

Communication Protocol: Compatible with various communication protocols such as PROFIBUS and industrial Ethernet, supporting seamless integration with HMI, SCADA and other upper level systems to achieve remote monitoring and data acquisition.

Programming environment: Supports STEP 7 programming software, providing multiple programming languages such as Sequential Function Diagram (SFC), Ladder Diagram (LAD), Statement Table (STL), Function Block Diagram (FBD), and Structured Text (SCL) for engineers to develop and debug programs.

5、 Physical parameters

Size: The module size is 175mm × 100mm × 81mm, adopting a compact design to save installation space.

Weight: Net weight of approximately 0.6kg, convenient for handling and installation.

Installation method: Supports DIN rail installation, easy and stable installation, suitable for various industrial control cabinets.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

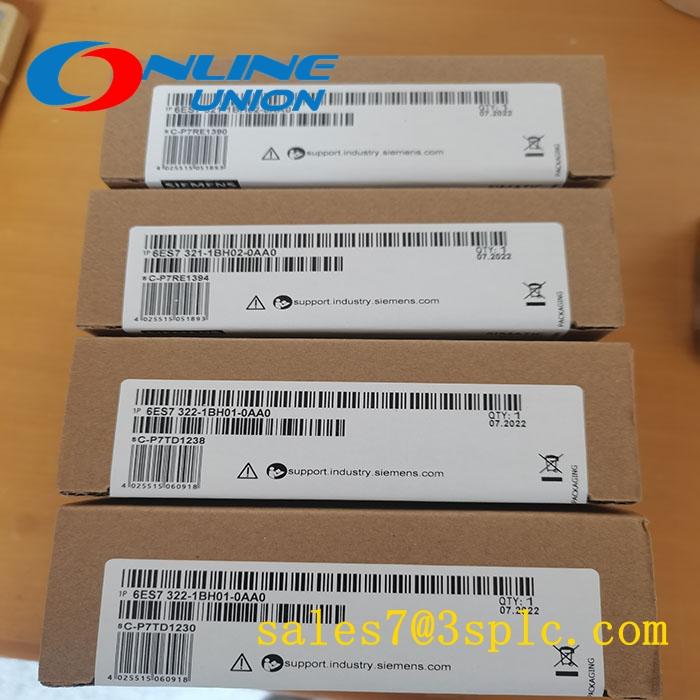

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
