6ES7272-0AA30-0YA1

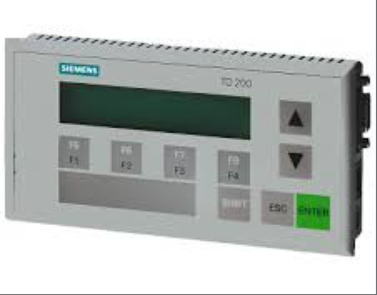

The 6ES7272-0AA30-0YA1 model product is a SIMATIC S7 series TD200 text display, designed specifically for S7-200 series PLCs. It has a two-line display function, with each line capable of displaying 20 characters (supporting ASCII, Cyrillic, and 10 Chinese characters). It is equipped with a 2.5-meter connecting cable and installation accessories, and communicates with S7-200 PPI protocol through RS485 interface. It supports a maximum transmission rate of 187.5 kbit/s and a rated working voltage of 24V DC. It can be directly powered by S7-200 communication port or external power supply. Its compact design (width 148mm x height 76mm x depth 27mm) is suitable for cabinets/control panels with a thickness of 0.3-4mm, and the protection level reaches IP65. (Front), capable of stable operation within the operating temperature range of 0 ° C to 60 ° C and the storage temperature range of -40 ° C to 70 ° C, widely used in human-machine interaction interfaces in industrial automation scenarios.
Technical specifcations for 6ES7272-0AA30-0YA1
Product type: Siemens SIMATIC S7 series TD200 text display, designed specifically for S7-200 series PLCs.
Display characteristics:
Display screen specifications: LCD backlight, line by line display.
Number of lines: 2 lines.
Number of characters per line: 20 characters (supports ASCII and Cyrillic), displayed in Chinese as 10 characters per line.
Character height: 5mm.
Electrical parameters:
Rated voltage: DC 24V.
Input current: rated at 120mA at 24V DC.
Power supply method: Powered by S7-200 communication interface or optional external power supply, CPU sensor power supply (24V DC) does not depend on the load.
Communication interface:
Interface type: RS485.
Transmission rate: maximum 187.5 kbit/s (PPI protocol).
Number of supported nodes: up to 126 (including S7-200, OP, TP, TBP, PG/PC, etc.).
Environmental adaptability:
Operating temperature range: 0 ° C to 60 ° C.
Storage/transportation temperature range: -40 ° C to 70 ° C.
Protection level: IP65 (front), in compliance with EN 60529 standard.
Mechanical parameters:
Dimensions: Width 148mm, Height 76mm, Depth 27mm.
Installation section width: 138mm.
Installation section height: 68mm.
Installation depth: 27mm.
Control cabinet/switch cabinet panel thickness adaptation range: 0.3mm to 4mm.
Weight: Approximately 250g (some data shows 0.415Kg, which may vary due to packaging or accessories).
Other features:
Installation method: Standard rail installation for easy integration and maintenance.
Programming environment: Supports configuration through STEP7-Micro/WIN software without ATEX certification.
Display function: Provides operation/fault message display, supports backlight illumination, ensuring clear reading even in low light environments.
