SIEMENS 6ES7234-4HE32-0XB0 New and Original High quality

6ES7234-4HE32-0XB0

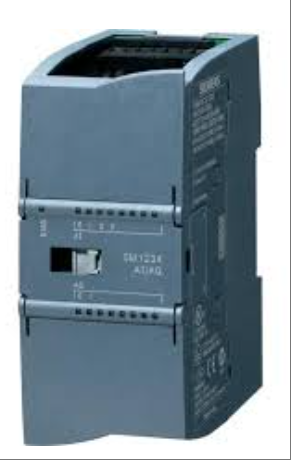

The 6ES7234-4HE32-0XB0 model product is an analog input/output module for Siemens S7-1200 series PLC, with 4 analog input channels and 2 analog output channels. It supports multiple signal types such as ± 10V, 0-20mA, 4-20mA, etc. The input signal resolution can reach 14 bits (voltage signal) or 13 bits (current signal), and the output signal resolution matches it. It is powered by 24V DC and has a compact module design that supports standard DIN rail installation. It has high anti-interference ability and is suitable for industrial automation fields that require high-precision analog signal acquisition and control. It can be seamlessly integrated with S7-1200 series CPUs to meet the expansion needs of small and medium-sized automation systems.

Technical specifcations for 6ES7234-4HE32-0XB0

Product type: Analog input/output module, used for SIMATIC S7-1200 series PLC.

Input/output configuration:

Analog input: 4-channel, supporting signal types such as ± 10V, ± 5V, ± 2.5V, 0-20mA, 4-20mA, etc., with a resolution of 14 bits (voltage signal) or 13 bits (current signal).

Analog output: 2 channels, supporting signal types such as ± 10V, 0-20mA, 4-20mA, etc., with a resolution of 14 bits (voltage signal) or 13 bits (current signal).

Power supply voltage: 24V DC.

Working temperature range: -20 ° C to+60 ° C (also known as -40 ° C to+70 ° C, but -20 ° C to+60 ° C is a more common working temperature range).

Dimensions: Length 100mm, width approximately 45mm (also known as 30mm x 100mm x 120mm, but considering that modules are usually installed on DIN rails and the width needs to match modules such as CPUs, the length and width are more likely to be around 100mm x 45mm, and the specific dimensions may vary depending on the product version or installation method).

Installation method: Supports standard DIN rail installation, can be installed horizontally or vertically.

Signal connection: Supports multiple connection methods such as screw interface, spring connection, and FastConnect.

Protection level: IP20.

Compatibility: Perfectly compatible with SIMATIC S7-1200 series CPUs, supporting configuration and programming through programming software such as STEP 7 Basic or TIA Portal.
