SIEMENS 6ES7231-5QD32-0XB0 New and Original High quality

6ES7231-5QD32-0XB0

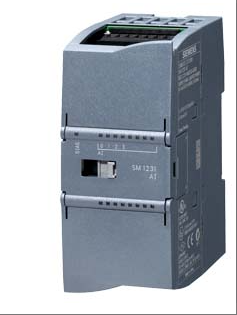

The 6ES7231-5QD32-0XB0 model product is a high-performance thermocouple analog input module designed specifically for SIMATIC S7-1200 series PLC systems. It adopts a compact modular structure and is equipped with 4-channel thermocouple signal access capability. It supports 16 bit resolution high-precision temperature data acquisition and is compatible with various thermocouple types such as K/J/T/E. By integrating cold junction compensation and wire breakage detection functions, it can monitor temperature changes in industrial sites in real time and ensure signal reliability; The module supports wide temperature operation from -25 ° C to+60 ° C and has an IP20 protection level. It is compatible with PROFINET/PROFIBUS communication protocols and has millisecond level signal response speed and electrical isolation characteristics. It is widely used in furnace monitoring, reactor temperature control, and precision equipment thermal management scenarios in industries such as metallurgy, chemical engineering, and mechanical manufacturing. It is the core component for achieving precise temperature measurement and control in the field of industrial automation.

Technical specifcations for 6ES7231-5QD32-0XB0

Series: SIMATIC S7-1200 Series

Type: Analog input module (thermocouple module)

2、 Electrical parameters

Input channel: 4 channels

Input type: Analog input, supports thermocouple signals (such as K, J, T, E, etc.)

Input voltage range: usually related to the selected thermocouple type, the module itself does not directly set the input voltage range, but converts it through the millivolt signal of the thermocouple

Resolution: 16 bits

Accuracy: High precision measurement, specific accuracy values may vary depending on thermocouple type and measurement range

Cold end compensation: Integrated cold end compensation function to ensure the accuracy of temperature measurement

Wire breakage detection: Supports wire breakage detection function for easy troubleshooting and maintenance

3、 Mechanical parameters

Dimensions: 100mm (length) x 45mm (width) x 75mm (depth)

Weight: Approximately a few hundred grams (specific weight may vary depending on product packaging and accessories)

Installation method: Supports DIN rail installation, easy to integrate into automation control systems

4、 Environmental parameters

Working temperature: -40 ° C to+70 ° C (some materials mention a working temperature range of -25 ° C to+60 ° C, please refer to the product manual for details)

Storage temperature: usually broader, such as -40 ° C to+85 ° C

Relative humidity: 5% to 95%, no condensation

Protection level: IP20, suitable for indoor installation environment

5、 Communication and Interface

Communication Protocol: Supports industrial communication protocols such as PROFINET and PROFIBUS, facilitating data exchange with PLC systems

Interface type: Modular design, connected to PLC system through backplane bus

6、 Function and Features

High precision measurement: using advanced analog conversion technology to ensure the accuracy of temperature measurement

Quick response: With fast signal response speed, suitable for industrial scenarios that require real-time monitoring

Easy to integrate: Perfectly compatible with S7-1200 series PLC systems, facilitating system integration and expansion

Reliable and stable: After rigorous testing and verification, it has extremely high reliability and stability

7、 Certification and Standards

Lead free/RoHS: Compliant with lead-free and RoHS environmental standards

Other certifications: Other international certifications such as CE and UL may also be obtained, please refer to the product manual for details

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
