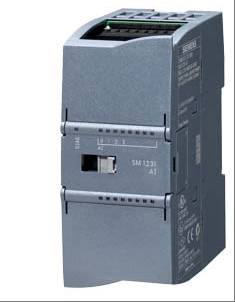

6ES7231-5PD32-0XB0
The 6ES7231-5PD32-0XB0 model product is an analog input module for Siemens S7-1200 series PLC, designed specifically for industrial automation scenarios. It adopts a compact structure, integrates 4 high-precision analog input channels, supports 24V DC power supply, is compatible with 4-20mA current signal and 0-10V voltage signal input, and achieves real-time monitoring and control of analog quantities such as temperature and pressure through high-speed data acquisition and precise signal processing technology; The module adopts Profinet interface to achieve high-speed communication with the main station equipment, with millisecond level response capability. Its IP20 protection level and wide temperature working range (-20 ℃ to+60 ℃) ensure stable operation in harsh industrial environments. It is widely used in manufacturing assembly line monitoring, building energy management, environmental monitoring systems and other fields. Through collaborative work with S7-1200 series CPU modules, it can significantly improve the response speed and data acquisition accuracy of industrial control systems.
Technical specifcations for 6ES7231-5PD32-0XB0
Input channel and sensor type:
Number of input channels: 4 RTD analog inputs.
Compatible sensor types: Supports various RTD sensors such as Pt100, Pt1000, Ni100, Ni1000, Cu10, Cu50, Cu100, etc.
Input range and accuracy:
Input range: -200 ° C to+850 ° C (depending on sensor type).
Resolution: 16 bits.
Accuracy: ± 0.5% (typical value).
Signal type and connection method:
Signal type: Supports 2-wire or 3-wire RTD connections.
Conversion time: approximately 250ms per channel.
Electrical isolation and power consumption:
Isolation: Electrical isolation between the channel and the backplane bus.
Power consumption: approximately 0.8W.
Installation and integration:
Installation method: rail installation, suitable for S7-1200 PLC rack.
Integration: Easy to integrate into the TIA Portal programming environment.
Protection and working temperature:
Protection level: IP20.
Working temperature range: -20 ℃ to+60 ℃ (other data shows that the working temperature range is -40 ℃ to+70 ℃, which may vary depending on the usage environment and conditions).
Size and weight:
External dimensions: There may be slight differences in data from different sources, such as 35mm (width) x 100mm (height) x 75mm (depth) or 45mm in width, 100mm in length, etc. The specific dimensions may vary depending on the product version or measurement method.
Weight: No specific weight data provided.
Storage temperature:
Storage temperature range: -40 ℃ to+85 ℃.
Our Services:
1、All our products are new and orginal, and of good quality
2、Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4、All inquiries will be valued and will reply in 24.
Packing & Delivery:
1、100% brand New and Original Factory Seal!
2、Warranty:1 year

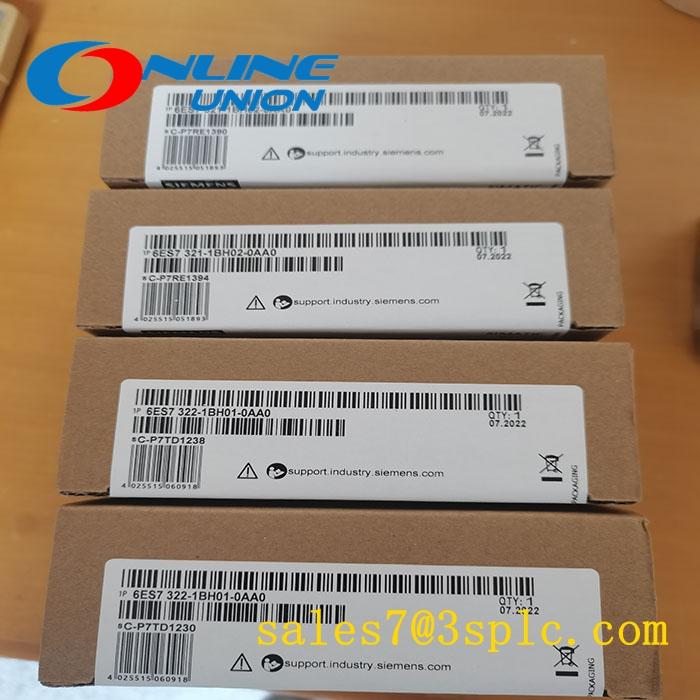

3、Package: Original packing with cartons.
4、Delivery time: Shipped in 3-7 days after payment
5、All the goods will be tested before shipment
