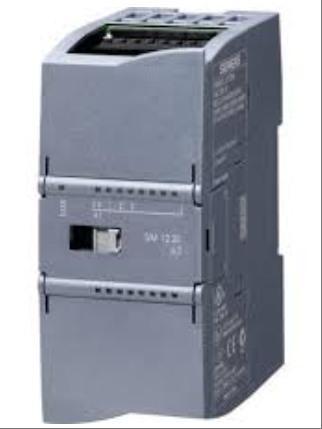

SIEMENS 6ES7231-5ND32-0XB0 New and Original High quality

6ES7231-5ND32-0XB0

The 6ES7231-5ND32-0XB0 model product is a high-performance analog input module designed specifically for the S7-1200 series PLC. It adopts a compact modular structure and supports 4-channel 16 bit high-precision analog signal acquisition. It can process ± 10V, ± 5V, ± 2.5V, ± 1.25V voltage signals and 0-20mA/4-20mA current signals. It achieves high-speed data exchange with the CPU through the S7-1200 backplane bus and has electrical isolation and anti-interference design. It is suitable for industrial environments with a wide temperature range of -25 ℃ to+60 ℃. It is widely used in manufacturing production line monitoring, energy industry power generation and distribution systems, building HVAC system control and other scenarios. Its modular design supports plug and play and is compatible with Siemens TIA Portal engineering software. Seamless integration, providing parameterized configuration tools and fault diagnosis functions, helping users quickly build stable and reliable automation control systems.

Technical specifcations for 6ES7231-5ND32-0XB0

Model: 6ES7231-5ND32-0XB0

Product type: Analog input module (SM 1231), used for S7-1200 series PLC

Purpose: To convert external analog signals (such as voltage and current) into digital signals that can be processed by PLC, achieving high-precision data acquisition

2、 Interface and signal parameters

Number of input channels: 4 channels

Supported signal types:

Voltage signal: ± 10V, ± 5V, ± 2.5V, ± 1.25V

Current signal: 0-20mA, 4-20mA

Resolution: 15 bits+symbol bit

Conversion accuracy: high-precision analog signal acquisition to ensure data accuracy

3、 Electrical and functional parameters

Power requirement: Powered by S7-1200 PLC, no additional power module required

Data transmission rate: High speed response to ensure real-time data collection

LED indicator light: provides status indication, making it convenient for users to monitor the operation status of the module

Isolation design: Electrical isolation to improve the system's anti-interference ability

Configuration method: Parameterized configuration is performed through TIA Portal software, and configuration data is stored in the CPU's memory card

4、 Mechanical characteristics

Shell material: sturdy plastic shell, suitable for industrial environments

Dimensions: 8.90 cm (length) x 10.60 cm (width) x 5.70 cm (height)

Weight: Approximately 0.161 kg

Installation method: DIN rail installation, convenient for on-site installation and maintenance

5、 Environmental adaptability

Working temperature: -25 ℃ to+60 ℃, suitable for common temperature ranges in industrial sites

Protection level: Complies with industrial standards and has certain dust and water resistance capabilities

6、 Certification and Standards

RoHS compliance: Complies with the RoHS directive and restricts the use of certain hazardous substances

Other certifications: Through international certifications such as CE, ensure product quality and safety

7、 Software and Compatibility

Compatibility: Highly compatible with S7-1200 series PLC, supporting use with models such as CPU 1211C, CPU 1212C, CPU 1214C, CPU 1215C, CPU 1217C, etc

Software support: Programming, configuring, and diagnosing through TIA Portal engineering software, providing fault diagnosis functions to help users quickly locate problems

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
