SIEMENS 6ES7223-1QH30-0XB0 New and Original High quality

6ES7223-1QH30-0XB0

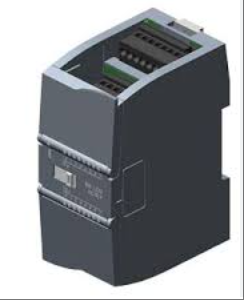

The 6ES7223-1QH30-0XB0 model product is a digital input/output expansion module for Siemens S7-1200 series PLC. It adopts a modular design and supports 8 channels of 120/230V AC digital input and 8 channels of relay output (contact capacity 2A). It has electrical isolation characteristics and achieves safe isolation between input and output channels. It is suitable for industrial sites that require processing AC signal input and relay control output, such as equipment start stop control, status monitoring, etc; The module is compatible with TIA Portal programming environment and can seamlessly integrate with S7-1200 series CPUs. It achieves high-speed data exchange through PROFINET interface and has a compact structure (specific dimensions may vary slightly depending on the version, generally about 45mm in width, 100mm in height, and 75mm in depth). It supports DIN rail installation and is suitable for industrial control cabinets with IP20 protection level. It is suitable for mechanical manufacturing, production line automation, building control and other fields, meeting the digital signal acquisition and control needs of small and medium-sized automation projects.

Technical specifcations for 6ES7223-1QH30-0XB0

Input and output specifications

Input type: 8-channel AC digital input, supporting 120V/230V AC voltage signals.

Output type: 8-channel relay output (RLY), with a maximum load capacity of 2A per relay contact.

Signal characteristics:

Input signal range: Suitable for 120V or 230V AC voltage levels.

Output contact capacity: Single point maximum load current of 2A, suitable for various industrial load control scenarios.

2、 Electrical parameters

Working voltage: 24V DC, compatible with the power supply standard of S7-1200 series PLC.

Power consumption: Typical power consumption needs to be calculated based on actual load, and the module's own design focuses on energy efficiency optimization.

Isolation feature: Electrical isolation design is adopted between input and output channels to enhance anti-interference ability and system stability.

3、 Mechanical and environmental parameters

Installation method: Supports DIN rail installation and is compatible with standard industrial control cabinet layouts.

Protection level: IP20 protection standard, suitable for indoor environments without conductive dust.

Working temperature range: -20 ° C to+60 ° C, meeting most industrial site environmental requirements.

Size specifications: Modular compact design, specific dimensions need to refer to official technical documents.

4、 Compatibility and Scalability

System compatibility: seamlessly integrated into the TIA Portal programming environment, supporting unified configuration of S7-1200 series CPUs.

Communication interface: Communicate with the CPU through the backplane bus and support PROFINET protocol extension.

Scalability: Can be combined with other S7-1200 signal modules to achieve flexible expansion of I/O points.

5、 Certification and Compliance

Product certification: Certified according to industrial standards such as CCC and CE, meeting global market access requirements.

Compliance: Adhere to the RoHS environmental directive and restrict the use of hazardous substances.
