SIEMENS 6ES7223-1PL21-0XA0 New and Original High quality

6ES7223-1PL21-0XA0

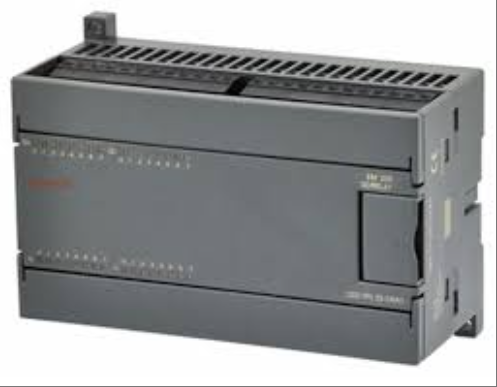

The 6ES7223-1PL21-0XA0 model product is a digital I/O expansion module for Siemens S7-200 series PLC, designed specifically for industrial automation scenarios. It adopts a compact modular structure and supports seamless integration with S7-200 series CPUs (such as CPU22X). It can expand digital input/output channels to meet the needs of automation systems of different scales; Its input part is compatible with 24V DC signals, and the output adopts a relay type interface. The single channel load capacity is up to 2A, and it has the ability to drive current and pull current. It is suitable for directly controlling industrial loads such as relays and solenoid valves; The module supports hot swappable installation and high-speed communication with the CPU through a standardized backplane bus. Combined with STEP 7-Micro/WIN programming software, it can flexibly configure input-output mapping relationships. It is widely used in manufacturing production line equipment monitoring, building air conditioning and lighting control, traffic signal systems and other scenarios. With high compatibility, easy scalability and stable and reliable industrial performance, it has become the core component for signal acquisition and actuator control in small and medium-sized automation projects.

Technical specifcations for 6ES7223-1PL21-0XA0

Basic functions and interfaces

Module type: Digital input/output hybrid module, the "PL" in the model indicates that it is a digital input/output module, suitable for expansion of S7-200 series PLC.

Input/output configuration: This module usually provides a certain number of digital input and output channels. The specific number of points needs to refer to the official manual, but based on the conventional configuration of Siemens S7-200 series EM223 module, it may include combinations such as 16 inputs/16 outputs, and the input part is compatible with 24V DC signals. The output part may use relay type interfaces to adapt to the driving requirements of different industrial loads.

Electrical characteristics:

Input voltage: compatible with 24V DC signal input, meeting the signal acquisition requirements of industrial field sensors, switches and other equipment.

Output load capacity: The relay type output interface typically has a single channel load capacity of up to 2A, with the ability to drive by current and pull current, and can directly control industrial loads such as relays and solenoid valves.

2、 Installation and compatibility

Installation method: Supports on-site installation and adopts modular design, making it easy to connect and expand with the CPU module of S7-200 series PLC through the backplane bus.

Compatibility: Designed specifically for S7-200 series PLCs, it can seamlessly integrate with models such as CPU22X to achieve expansion of signal acquisition and actuator control functions.

3、 Environmental adaptability

Working temperature: It can operate stably within a certain temperature range. The specific temperature range needs to refer to the product manual, but it can usually adapt to the common environmental temperature changes in industrial sites.

Protection level: As an industrial grade product, it has a certain level of protection to resist adverse factors such as dust and moisture in industrial environments.

4、 Application scenarios

Manufacturing production line: used for equipment monitoring, signal acquisition, and actuator control to achieve automation of production processes.

Building automation: Implementing digital signal input and output control in air conditioning, lighting, and other systems to enhance the intelligence level of building management.

Traffic signal system: Control the on/off status of traffic signals to ensure smooth and safe traffic.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
