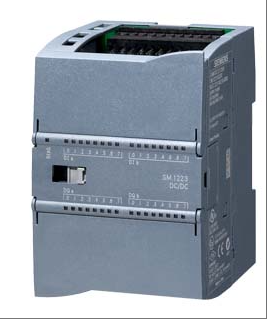

6ES7223-1BL32-0XB0
The 6ES7223-1BL32-0XB0 model product is a high-performance digital I/O module in the Siemens S7-1200 series, specifically the SM1223 model, which supports 16 channel digital input (24V DC) and 16 channel digital output (relay 2A). With high-precision ADC conversion, compact modular design, fault diagnosis and alarm functions, it is suitable for process control, manufacturing execution, and intelligent buildings in the field of industrial automation. It can be seamlessly integrated with Siemens controllers to achieve efficient distributed I/O expansion and stable signal transmission.
Technical specifcations for 6ES7223-1BL32-0XB0
Input/Output Points: This module has 16 digital input terminals (DI) and 16 digital output terminals (DO), for a total of 32 I/O points.
Power supply voltage: The rated value is 24V DC, with an allowable range of 20.4V to 28.8V DC, ensuring stable operation under voltage fluctuations.
Input characteristics:
The input voltage type is DC (direct current).
The digital input terminal supports 24V DC input for charging/pulling current.
The input delay can be parameterized, including multiple options such as 0.2ms, 0.4ms, 0.8ms, etc., to adapt to different application scenarios.
Output characteristics:
The digital output terminal is a relay output, which has high reliability and durability.
The rated output voltage is 5V DC to 30V DC for DC and 5V to 250V AC for AC.
The rated output current is 2A (under resistive load).
The on/off capability of the output terminal: the maximum value under resistive load is 2A, the maximum value under lighting load (DC) is 30W, and the maximum value under AC is 200W.
Output delay: The maximum value from "0" to "1" or from "1" to "0" is 10ms.
Protection level: IP20, with certain dust and electric shock resistance.
Installation method: on-site installation, convenient for users to flexibly deploy according to actual needs. The module adopts a modular structure, which is easy to integrate and expand with other PLC modules.
Size and weight:
Size (WxHxD): approximately 70mm x 100mm x 75mm.
Weight: Approximately 310g.
Power consumption and current consumption:
Power consumption: approximately 4.5W.
Current consumption (SM bus): approximately 185mA.
Current consumption (24V DC): Approximately 4mA input per point.
Isolation group and current:
Isolation group (output): 1.
Current (output) at each common terminal: 8A.
