SIEMENS 6ES7222-1BF00-0XA0 New and Original High quality

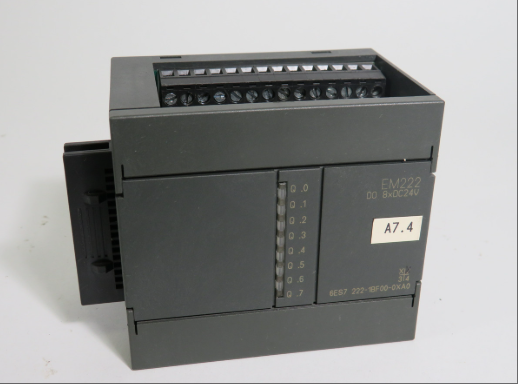

6ES7222-1BF00-0XA0

The 6ES7222-1BF00-0XA0 model product is a digital input module for Siemens SIMATIC S7-200 series PLC. As an extension module in the S7-200 system, its core function is to convert the switch signals of external devices (such as button and sensor trigger signals) into digital input signals recognizable by the PLC. It is widely used in equipment status monitoring and logic control in industrial automation scenarios. This module usually adopts a compact design, supports 24V DC power input, is compatible with the signal level standards of S7-200 series CPUs, has high anti-interference ability and industrial stability, and can adapt to harsh industrial environments. Its modular structure is easy to combine with other modules of S7-200 (such as CPU module and digital output module), and data exchange is achieved through backplane bus. It is suitable for fields such as mechanical manufacturing, production line monitoring, and building automation that require real-time acquisition of discrete signals. By cooperating with STEP 7 Micro/WIN programming software, it can achieve fast configuration and logic programming of input signals, significantly improving the response speed and reliability of automation systems.

Technical specifcations for 6ES7222-1BF00-0XA0

Output type and quantity: This module is a digital output module with 8 digital output channels, suitable for controlling external devices such as relays and contactors.

Output voltage and current:

Output voltage: Supports 24V DC power input and is compatible with the signal level standard of S7-200 series PLC.

Output current: The rated current of each output channel is 0.75A, and the total output current needs to be within the power supply capacity of the module to ensure stable operation.

Electrical characteristics:

Power consumption: The module has low power consumption during operation, and the specific power consumption value needs to refer to the product manual. It is usually suitable for the low-power requirements of industrial automation systems.

Insulation performance: It has high anti-interference ability and can operate stably in industrial environments, reducing the impact of external electromagnetic interference on the system.

Installation and dimensions:

Installation method: Adopting a compact design, supporting DIN rail installation, making it easy to deploy flexibly inside the control cabinet.

Physical dimensions: The module size is compact, and specific dimensions should refer to the product manual. It is suitable for industrial sites with limited space.

Environmental adaptability:

Working temperature: It can operate normally within the temperature range of 0 ° C to 55 ° C and is suitable for most industrial environments.

Storage temperature: The storage temperature range is -25 ° C to 70 ° C to ensure the safety of the module during transportation and storage.

Relative humidity: It can operate stably in a humidity environment of 5% to 95% (without condensation) and is suitable for humid or dusty industrial sites.

Communication and Interface:

Backplane bus: Communicate with CPU modules through the S7-200 series PLC's backplane bus to achieve high-speed data transmission.

Input/output image area: occupies a specific amount of digital output bytes in the image area of the PLC, which is convenient for programming and debugging.

Functional features:

Output type: Typically a transistor output type, suitable for high-frequency switch applications such as controlling solenoid valves, indicator lights, etc.

Protection function: It has overcurrent, short circuit and other protection functions to ensure the safe operation of modules and external devices.

Certification and Compliance:

Product certification: Complies with international certification standards such as CE to ensure product quality and safety.
