SIEMENS 6ES7216-2AF22-0XB0 New and Original High quality

6ES7216-2AF22-0XB0

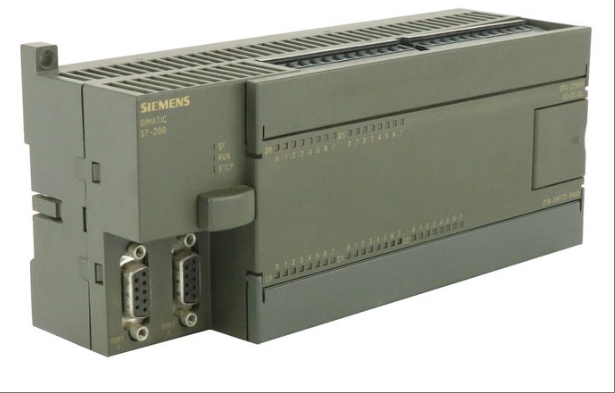

The 6ES7216-2AF22-0XB0 model product belongs to the CPU module of Siemens S7-200 series PLC, designed specifically for small and medium-sized automation control systems. It has 24V DC power supply and digital input/output functions. The machine integrates a total of 40 I/O points with 24 inputs/16 outputs, supporting the expansion of digital I/O points to 248 or analog I/O points to 35 through expansion modules. It has a built-in 13K byte program and data storage space, equipped with 6 independent 30kHz high-speed counters and 2 independent 20kHz high-speed pulse outputs, integrated PID controller function, equipped with 2 RS485 communication/programming interfaces, supporting PPI, MPI and free mode communication protocols. With modular architecture and flexible expansion capabilities, it can meet the needs of complex small and medium-sized enterprises. The core requirements for high integration, strong scalability, and real-time control in control systems.

Technical specifcations for 6ES7216-2AF22-0XB0

Power Supply and Input/Output: Powered by 24V DC, this machine integrates 40 digital I/O points with 24 inputs/16 outputs, which can meet the basic needs of signal acquisition and control for small and medium-sized control systems.

Storage capacity: Built in 13K bytes of program and data storage space, supporting programming and data processing of complex control logic, with a power outage hold time of up to 100 hours (typical value, minimum 70 hours at 40 ° C), ensuring safe storage of critical data in the event of a power outage.

Counting and pulse function: Equipped with 6 independent 30kHz high-speed counters, it can achieve accurate counting of high-speed signals; Provide 2 independent 20kHz high-speed pulse outputs, suitable for precise control of stepper motors or servo motors.

Control function: Integrated PID controller, supports closed-loop control algorithm, can achieve automatic adjustment of process parameters such as temperature and pressure, and improve system control accuracy.

Communication Interface: Equipped with 2 RS485 communication/programming ports, supporting PPI, MPI, and free mode communication protocols, it can achieve efficient data exchange with HMI, frequency converters, and other devices.

Scalability: It can connect up to 7 expansion modules and can expand up to 248 digital I/O points or 35 analog I/O points, flexibly adapting to control needs of different scales.

Working environment: The working temperature range is -25 ℃ to+60 ℃, suitable for extreme industrial environments such as high and low temperatures; The protection level meets industrial standards, ensuring stable operation under harsh conditions.

Hardware features: Adopting modular design, the I/O terminal block can be disassembled as a whole, making it easy to install and maintain; The external dimensions are 190 × 80 × 62mm, with a compact design that saves control cabinet space.
