SIEMENS 6ES7215-1AL40-0XB0 New and Original High quality

6ES7215-1AL40-0XB0

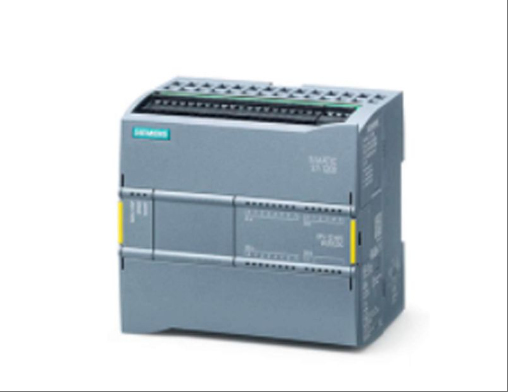

The SIEMENS brand 6ESC215-1AL40-0XB0 model product is a SIMATIC S7-1200 series compact CPU module with highly integrated automation control capabilities, suitable for small and medium-sized industrial scenarios. This module is equipped with 14 channels of 24V DC digital input, 10 channels of 24V DC digital output, 2 channels of 0-10V DC analog input, and 2 channels of 0-20mA DC analog output interfaces, which can achieve high-precision signal acquisition and actuator driving; Built in 200KB program memory and 1MB data memory, supporting complex logical operations and data processing tasks; Equipped with dual port PROFINET interface, supporting real-time Ethernet communication and distributed I/O expansion, compatible with TIA Portal engineering configuration platform, facilitating system integration and rapid debugging. Its compact design (110mm wide) is suitable for 35mm DIN rail installation, with a working voltage range of 20.4-28.8V DC and a protection level of IP20. It can operate stably in a wide temperature environment from -25 ° C to+60 ° C and is widely used for automation control needs in equipment manufacturing, textile machinery, medical equipment and other fields.

Technical specifcations for 6ES7215-1AL40-0XB0

Basic information

Product model: 6ES7215-1AL40-0XB0

Product Series: SIMATIC S7-1200

CPU type: CPU 1215C

Power supply type: DC/DC/DC (24V DC power supply, both digital input/output are 24V DC)

2、 Interface and I/O configuration

Digital input: 14 channels, 24V DC, supporting source/drain input

Digital output: 10 channels, 24V DC, transistor output, rated current 0.5A/channel

Analog input: 2 channels, 0-10V DC

Analog output: 2 channels, 0-20mA DC

Communication interface: 2 PROFINET ports, supporting real-time Ethernet communication

3、 Memory and Performance

Program memory: 200KB (integrated)

Data storage: 1MB (integrated)

Loading memory: 4MB (integrated), supports expansion through SIMATIC memory cards

Processing time:

Bit operation: 0.08 µ s

Word operation: 1.7 µ s

Floating point operation: 2.3 µ s

4、 Electrical parameters

Power supply voltage: 20.4-28.8V DC

Current consumption:

CPU rated value: 500mA

Maximum value of CPU and all expansion modules: 1500mA

Output current:

Backplane bus (DC 5V): maximum 1600mA

Sensor power supply (24V DC): L+minus 4V DC (minimum value)

Power loss: typical value of 12W

5、 Environmental and mechanical parameters

Protection level: IP20 (installed inside the cabinet)

Installation method: DIN rail installation

Working temperature: -25 ° C to+60 ° C

Storage temperature: -40 ° C to+85 ° C

Relative humidity: 5% to 95% (no condensation)

6、 Functionality and Scalability

Hardware Expansion:

Maximum number of components: 3 communication modules, 1 signal board, 8 signal modules

Clock function:

Hardware clock (real-time clock): Buffer duration of 480h (typical value)

Daily deviation: ± 60 seconds/month at 25 ° C

Programming software: Supports TIA Portal Engineering Configuration Platform (STEP 7 V14 and above versions)

7、 Application scenarios

Industrial automation: suitable for small and medium-sized automation control systems, such as equipment manufacturing, textile machinery, medical equipment, etc.

Process control: Supports analog signal acquisition and output, suitable for situations that require high-precision signal processing.
