SIEMENS 6ES7214-2AD23-0XB8 New and Original High quality

6ES7214-2AD23-0XB8

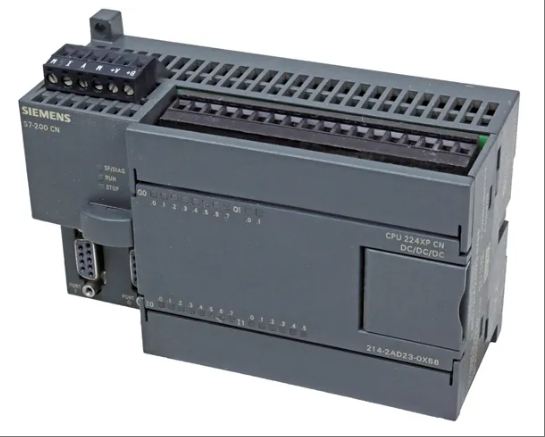

The 6ES7214-2AD23-0XB8 model product is a high-performance CPU central control unit of the Siemens S7-200 series, with a compact design, powerful control capabilities, and rich communication interfaces, suitable for various automation control scenarios. This module integrates 24 digital I/O points with 14 inputs/10 outputs and 3 analog I/O points with 2 inputs/1 outputs. It can be connected to 7 expansion modules and can be expanded up to 168 digital I/O points or 38 analog I/O points, meeting diverse control needs. It is equipped with 22k bytes of program and data storage space, 6 independent high-speed counters (100kHz), 2 100kHz high-speed pulse outputs, and 2 RS485 communication/programming ports, supporting PPI, MPI communication protocols and free mode communication capabilities. It has PID function, linear ramp pulse command, diagnostic LED, data recording and formulation function, etc., which can achieve complex control tasks and efficient communication. This product is widely used in the field of industrial automation and is favored by users for its high cost-effectiveness and reliability.

Technical specifcations for 6ES7214-2AD23-0XB8

Input and output points: It has 14 digital input points and 10 digital output points, with 2 built-in analog input points and 1 analog output point.

Output type: transistor output. In terms of output current, CPU 224XP can output 280mA and 400mA respectively, and can also be used as a load power supply.

High speed counter: equipped with 6 high-speed counters (some information mentions a frequency of 30KHz, while others display 2x200 kHz, 4x400 kHz, which can be enabled and reset through parameter settings, with 2 separate input terminals that can be used as up/down counters simultaneously; Alternatively, two incremental encoders with a 90 degree phase difference (2x100 kHz, 2x20 kHz) can be connected.

Pulse output: Equipped with 2 high-frequency pulse outputs (maximum 20KHz or 100kHz), used to control stepper motors or servo motors to achieve positioning tasks.

Communication interface: equipped with 2 RS-485 communication interfaces, which can be used as PPI interfaces for programming functions, HMI functions (such as TD 200, OP), S7-200 internal CPU/CPU communication (speed 9.6/19.2/187.5 kbps), or as MPI slave stations for data exchange with MPI master stations (such as S7-300/-400, OP, TD, button board); It also has a user programmable interface (FreePort) with interrupt capability, used for serial data exchange with non Siemens devices. For example, under ASCII protocol, PC/PPI cables can be used as RS 232/RS 485 adapters at baud rates of 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2 Kbit/s.

Scalability: Can connect expansion modules (only 22x series expansion modules can be used), and perform fault free expansion through digital and analog expansion modules.

Storage function: User data (such as flag status, data blocks, timers, counters) can be stored for about 5 days through internal supercapacitors. Choosing a battery module can extend the storage time to 200 days (battery module lifespan of 10 years), and the battery module is inserted into the card slot of the memory module.

Analog potentiometers: Equipped with 2 analog potentiometers, it can be used as a set value counter in daily work, such as setting time.

Programming cable: The programming cable models are 6ES7901-3CB30-0XA0 (PC/PPI cable) and 6ES7901-3DB30-0XA0 (PC USB to CPU).

Supporting protocols: Supports multiple communication protocols, such as Profibus DP, to achieve efficient data exchange with other devices.

Programming Language: Supports multiple programming languages such as Instruction List (IL), Ladder Diagram (LD), and Function Block Diagram (FBD), allowing users to program flexibly according to their needs.

Diagnostic monitoring: With rich diagnostic and monitoring functions, it can monitor the system status in real time and give timely alarms.

Remote function: Supports remote access and control, allowing users to easily monitor and operate the system, improving production and operation efficiency.

Exterior installation: With a compact exterior design and easy to install features, it adopts a plug-in connection method, making it convenient for users to replace and repair modules. At the same time, it has shockproof, dustproof, and anti-interference properties, and can reliably operate in harsh working environments. The working temperature range is -20 ℃ to+60 ℃.
