SIEMENS 6ES7214-2AD23-0XB0 New and Original High quality

6ES7214-2AD23-0XB0

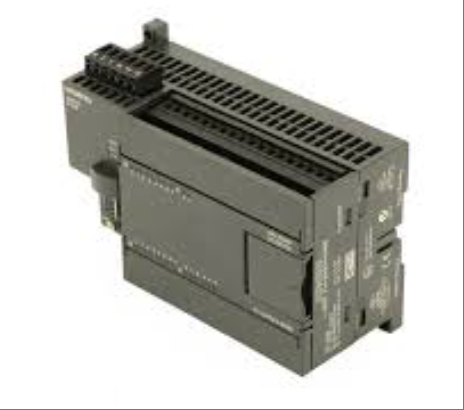

The 6ES7214-2AD23-0XB0 model product is a compact device with CPU 224XP in the Siemens S7-200 series, belonging to the SIMATIC S7-200CN product series. It has 14 DC digital inputs and 10 DC digital outputs, integrates 2 analog inputs and 1 analog output point, supports high-speed pulse output and interrupt input functions, is equipped with 12/16KB program memory and 10KB data memory, is powered by 24V DC power supply, supports PPI/Freeport communication protocol, and can be programmed through STEP 7 Micro/WIN software. It is suitable for independent operation or networking to achieve complex automation control tasks and is widely used in industrial automation scenarios.

Technical specifcations for 6ES7214-2AD23-0XB0

Input/output configuration:

Number input: 14, DC24V。 The rated input voltage is DC24V, ranging from 0 to 5V for signal "0" (some ports range from 0 to 1V), and the minimum value for signal "1" is 15V (some ports have at least 4V). The typical input current is 2.5mA, which can reach 8mA for specific ports. The input delay can be parameterized, ranging from 0.2ms to 12.8ms.

Digital output: 10, transistor type, DC24V。 The minimum output voltage for signal "1" is L+-0.4V, the rated output current is 750mA, and the maximum residual current for signal "0" is 10 µ A. The output delay under resistive load is 15 µ s from "0" to "1" and 130 µ s from "1" to "0".

Analog inputs: 2, with high-resolution inputs, capable of sensitive detection and feedback of various analog signals.

Analog output: 1, providing accurate analog signal output.

Memory:

Program memory: Maximum 16KB, of which 12KB can be used for user programs.

Data storage: 10KB, used to store data during operation.

Processing speed:

Bit instruction execution time: maximum 0.22 µ s, with fast processing capability.

Power Supply:

Rated voltage: DC24V, allowable range is 20.4V DC to 28.8V DC.

Interface and Communication:

Integrated RS485 interface, supporting MPI and PPI protocols.

MPI protocol: As an MPI slave, it is used for data exchange with the MPI master, with a transmission rate of up to 19.2/187.5 kbit/s.

PPI protocol: Comes with PPI protocol for programming and HMI functions, with a transmission rate of up to 9.6/19.2/187.5 kbit/s.

Supports free port communication, with baud rates ranging from 1.2Kbit/s to 115.2 Kbit/s.

Scalability:

Up to 7 expansion devices can be connected, and only S7-22x series expansion modules can be used.

Other features:

Equipped with high-speed counter function, up to 200kHz.

Provide 2 high-frequency pulse outputs (up to 20KHz) for controlling stepper motors or servo motors to achieve positioning tasks.

Support real-time clock function, which can add time stamps to information, record machine running time or control process time.

It has good compatibility and maintainability, and can be well adapted to various Siemens PLCs and other devices. The module design is simple, easy to troubleshoot and replace.
